Subwoofers
R5RPTK-FS-SW

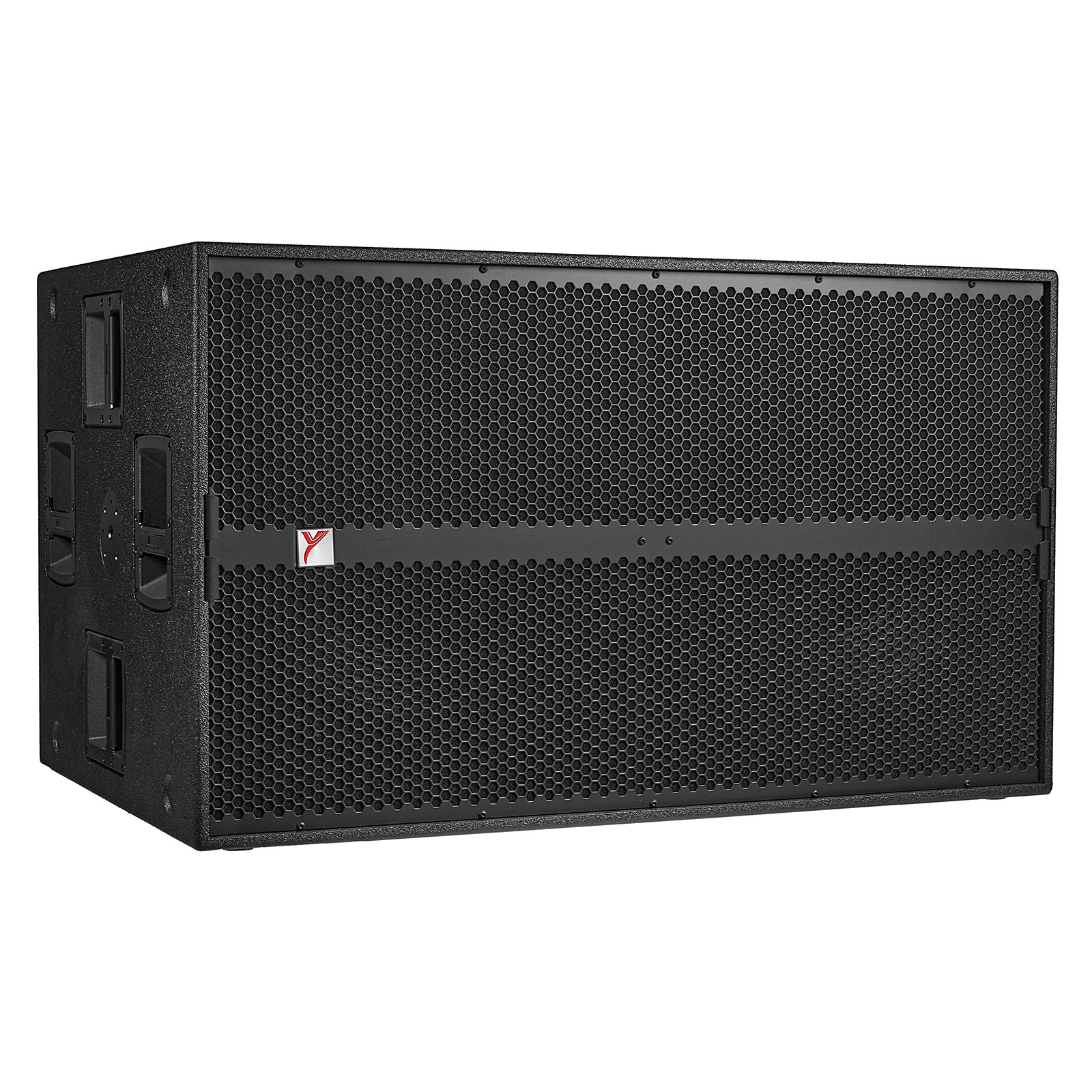

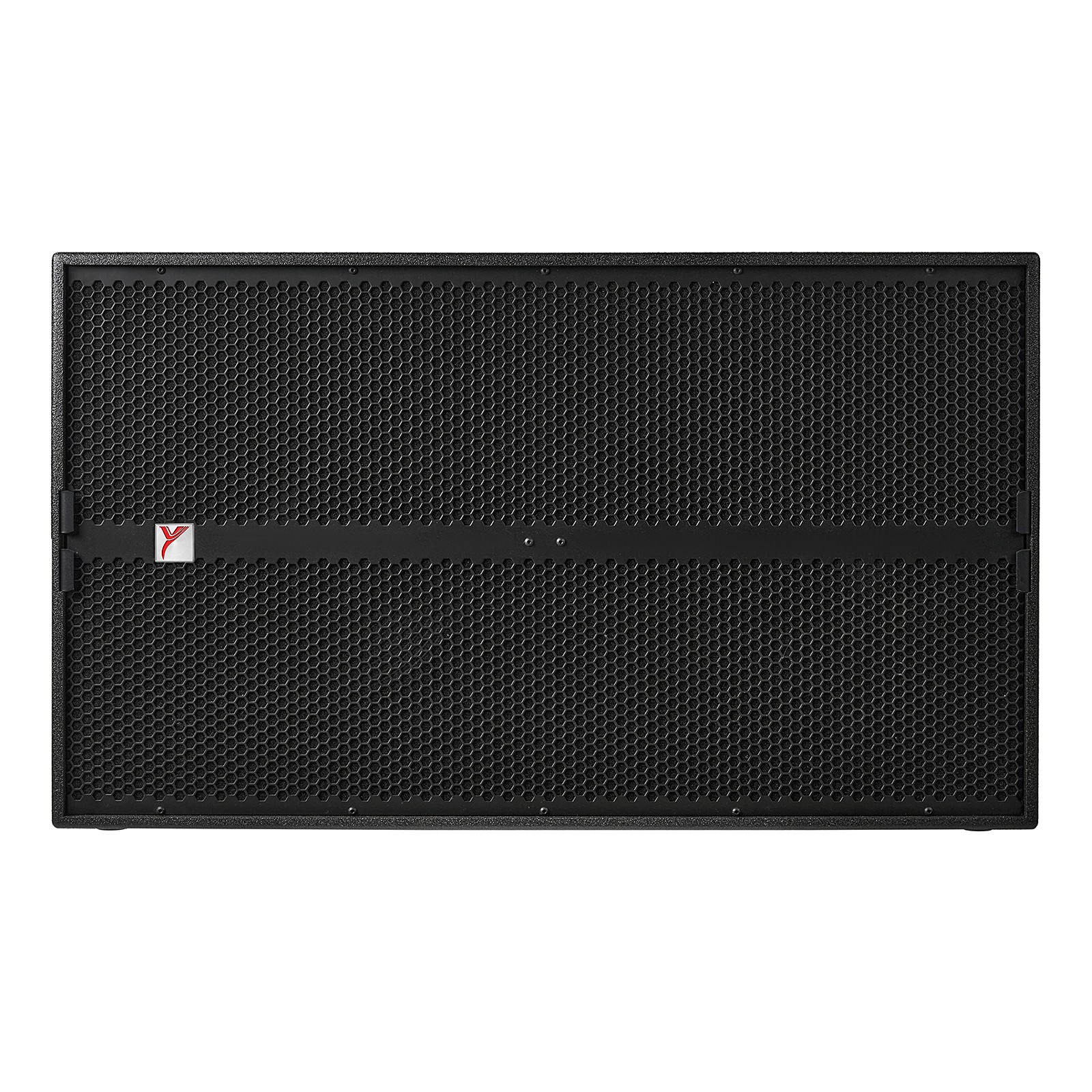

Dual 21-inch Subwoofer
High-power dual-21-inch direct-radiating subwoofer with deep, full low-frequency reproduction for extended bass support with multiple line array systems.
Product Overview
High-power dual-21-inch direct-radiating subwoofer with deep, full low-frequency reproduction for extended bass support with multiple line array systems.
Applications
Medium & large outdoor events; fixed installation in indoor and outdoor venues
Key Features
High-power dual-21-inch direct-radiating subwoofer with deep, full low-frequency reproduction for extended bass support with multiple line array systems.

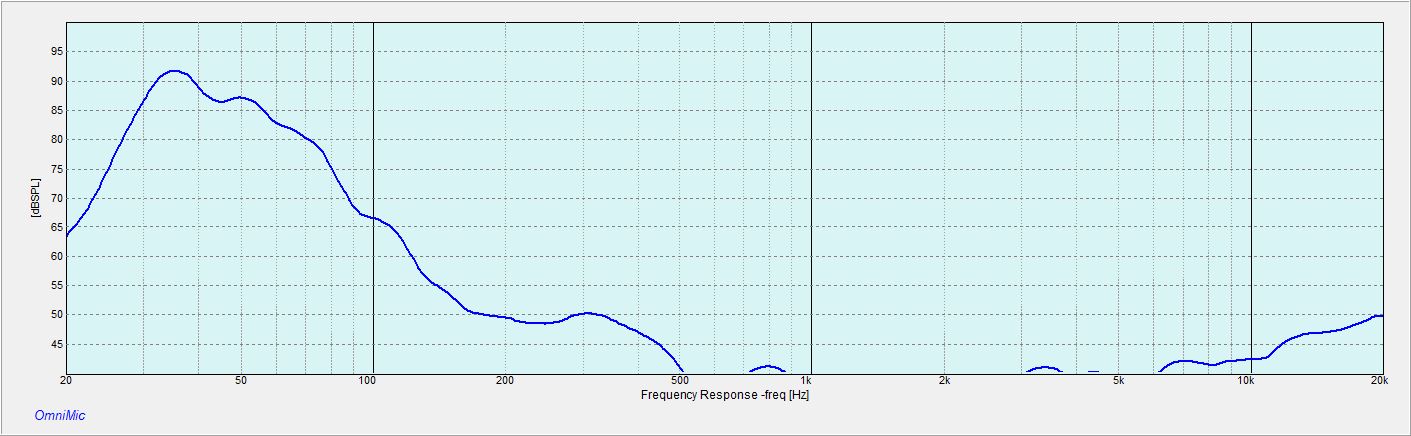

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 30Hz-350Hz(±3dB) |
| Sensitivity (1W, 1m) | 106dB |
| Nominal impedance | 4Ω |
| AES power | 2000W |
| Peak power | 6000W |
| LF driver | 21" 115mm ×2 (Neo） |
| Maximum SPL / Peak | 139dB /145dB |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W1180*H700*D783mm |
| Weight | 99.4kg |
| Connectors | Pending engineering confirmation |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
