Subwoofers
R2RPTK-FS-SW

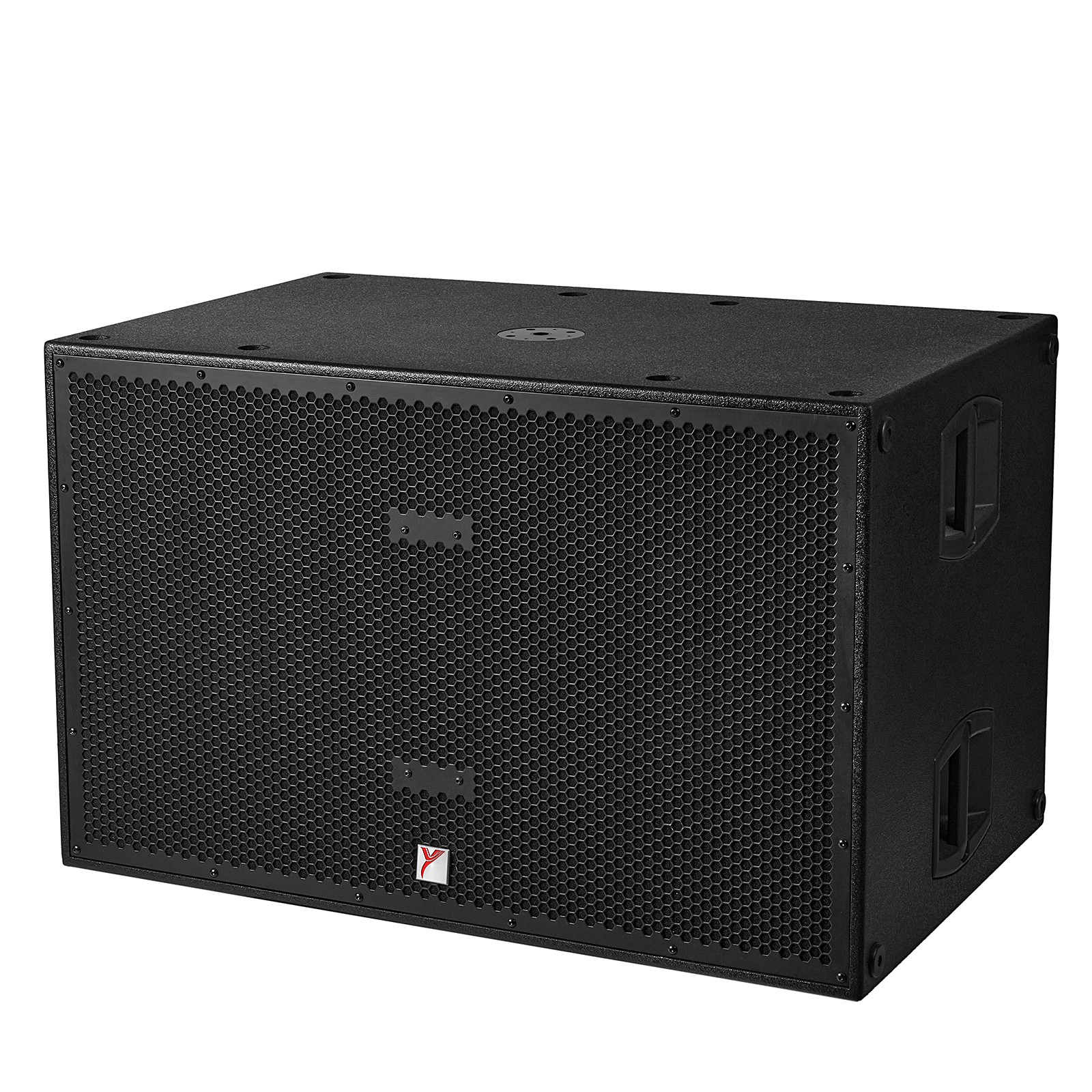

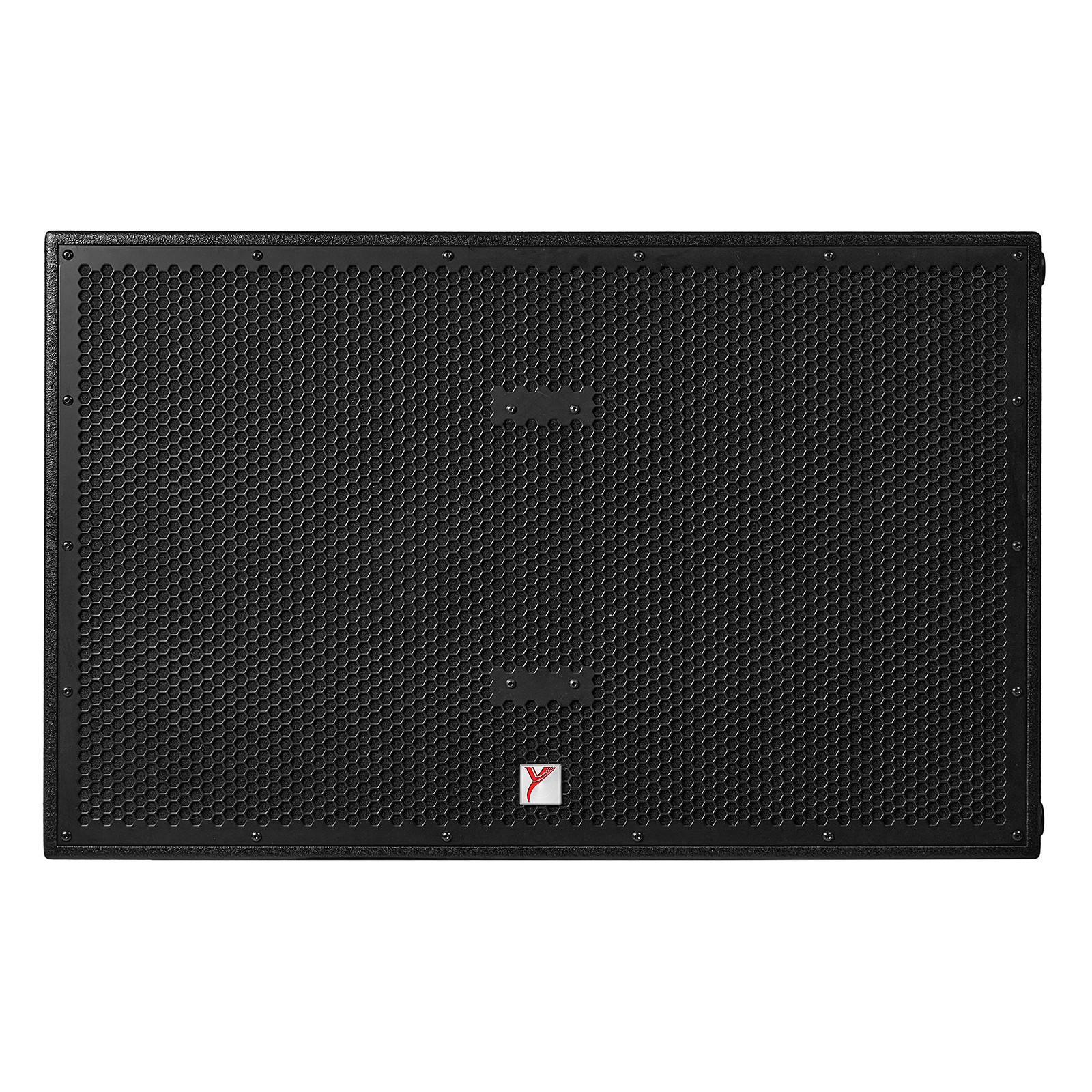

Dual 18-inch Subwoofer
High-power dual-18-inch direct-radiating subwoofer with full, deep bass, suitable for flexible pairing with multiple line array systems.
Product Overview
High-power dual-18-inch direct-radiating subwoofer with full, deep bass, suitable for flexible pairing with multiple line array systems.
Applications
Medium & large outdoor events; fixed installation in indoor and outdoor venues
Key Features
High-power dual-18-inch direct-radiating subwoofer with full, deep bass, suitable for flexible pairing with multiple line array systems.

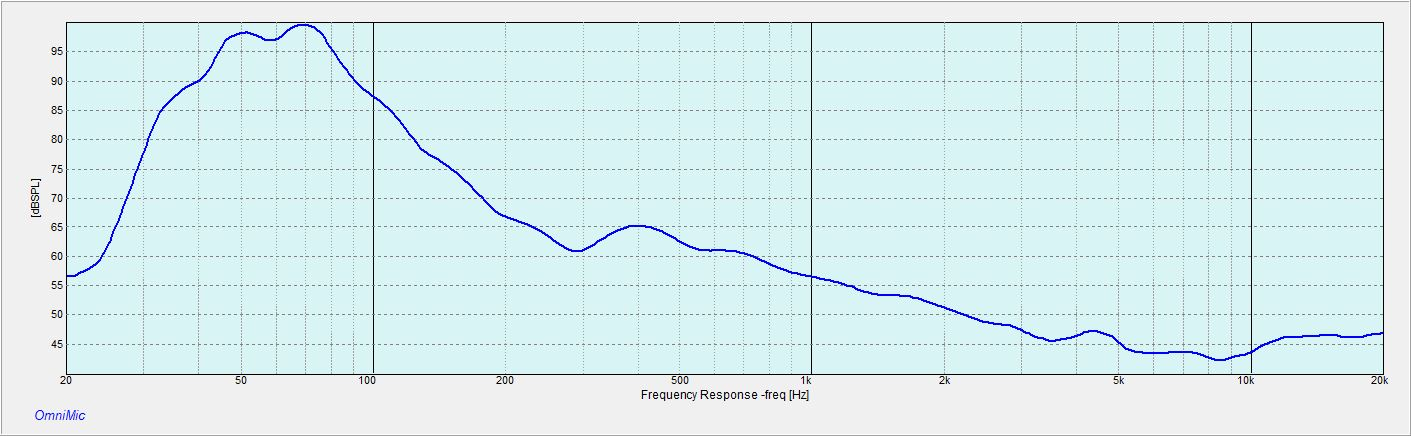

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 35Hz-500Hz(±3dB) |
| Sensitivity (1W, 1m) | 104dB |
| Nominal impedance | 4Ω |
| AES power | 1600W |
| Peak power | 4800W |
| LF driver | 18" 100mm ×2 (Standard magnet） |
| Maximum SPL / Peak | 136dB /142dB |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W1150*H700*D700mm |
| Weight | 97.6kg |
| Connectors | Pending engineering confirmation |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
Need a Product Recommendation or Quote?
Tell us the application, venue and system requirement.
