Subwoofers
L5RPTK-FS-SW

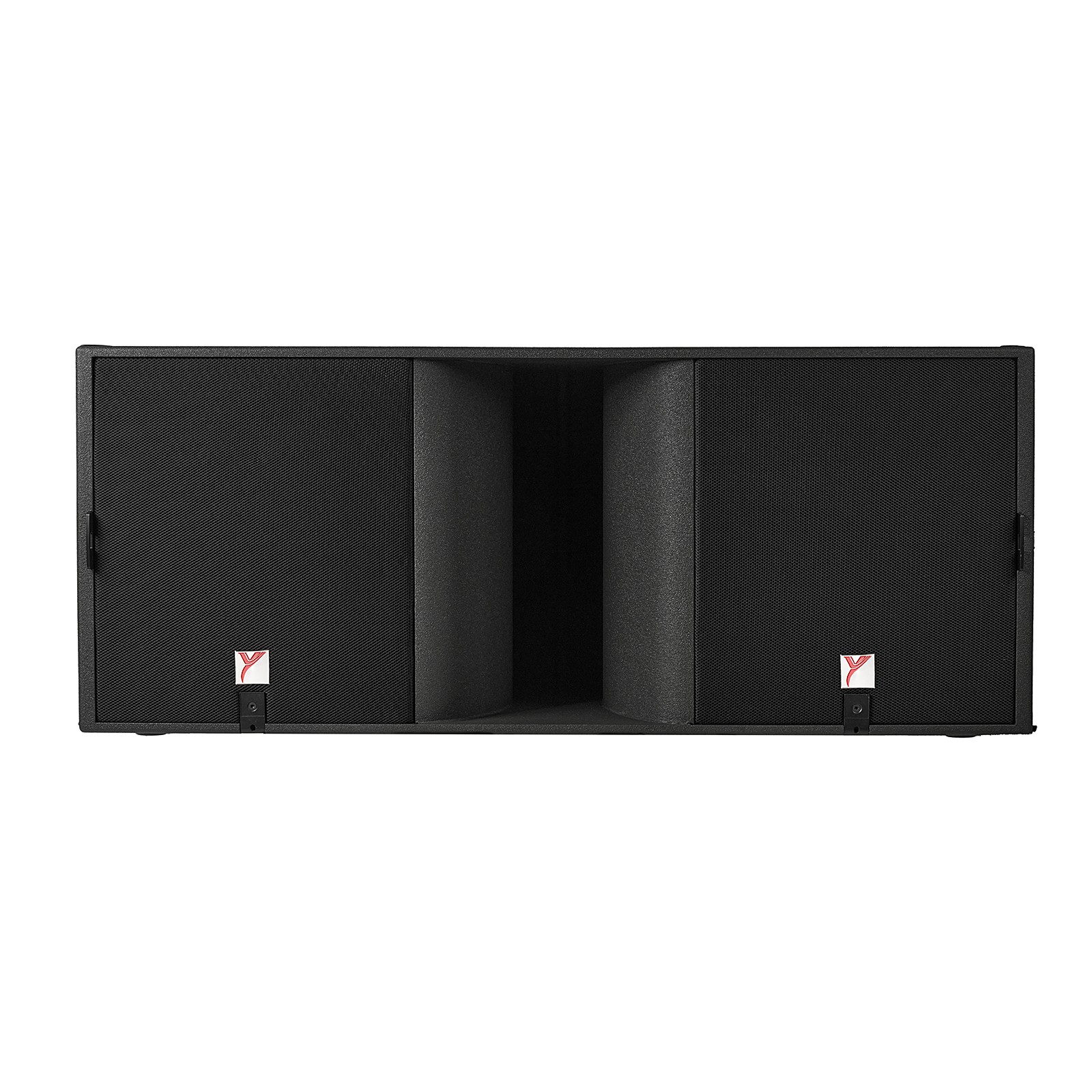

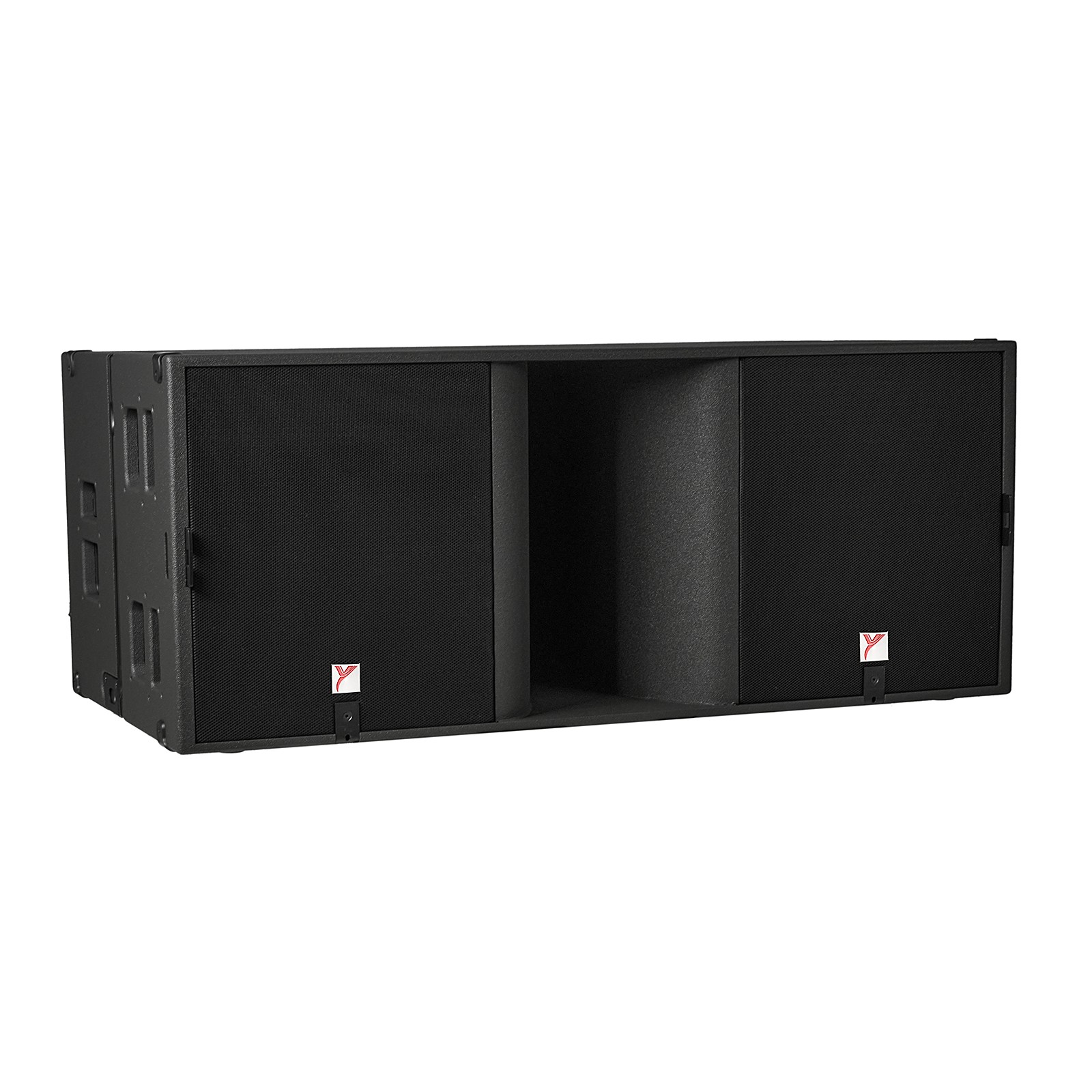

Dual 18-inch Subwoofer
L-Vent laminar-flow port design with high power, strong dynamics and impactful low-frequency output. Supports flown or ground-stacked deployment and pairs with L2 and L6.
Product Overview
L-Vent laminar-flow port design with high power, strong dynamics and impactful low-frequency output. Supports flown or ground-stacked deployment and pairs with L2 and L6.
Applications
Live events of different scales; banquet halls; bars; sports venues; performing arts centers
Key Features
L-Vent laminar-flow port design with high power, strong dynamics and impactful low-frequency output. Supports flown or ground-stacked deployment and pairs with L2 and L6.

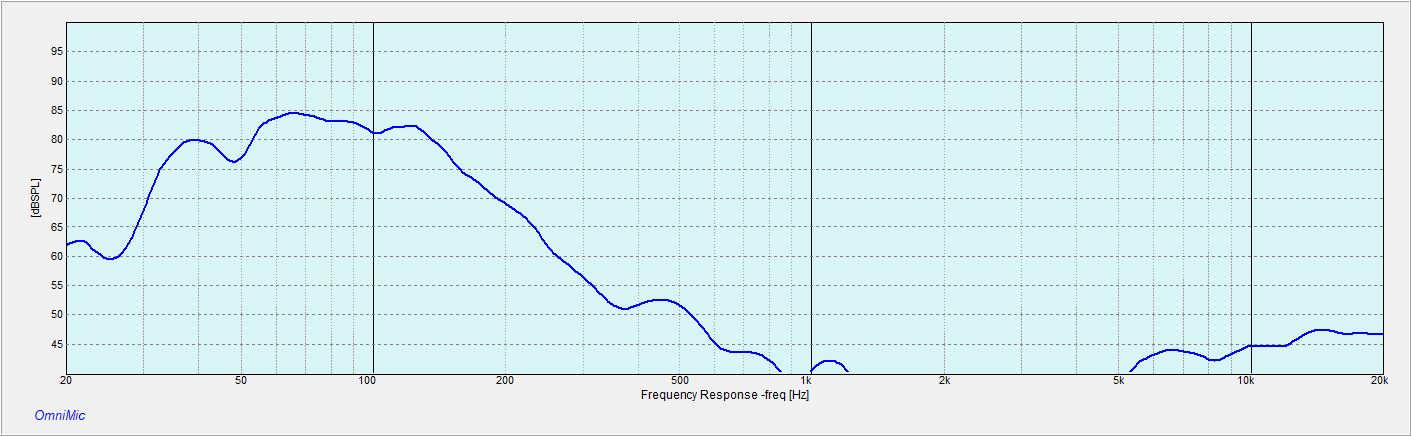

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 35Hz-180Hz(±3dB) |
| Sensitivity (1W, 1m) | 106dB |
| Nominal impedance | 4Ω |
| AES power | 1600W |
| Peak power | 4800W |
| Recommended crossover | Pending engineering confirmation |
| LF driver | 18" 100mm 8Ω×2(Neo） |
| Maximum SPL / Peak | 138dB/144dB |
| Connectors | (NEUTRIK NL4)*1 +1-1 |
| Cabinet material | 25mm+18mm Birch wood |
| Dimensions (W × H × D) | W1340*H555*D700mm |
| Weight | 91.4kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
