Subwoofers

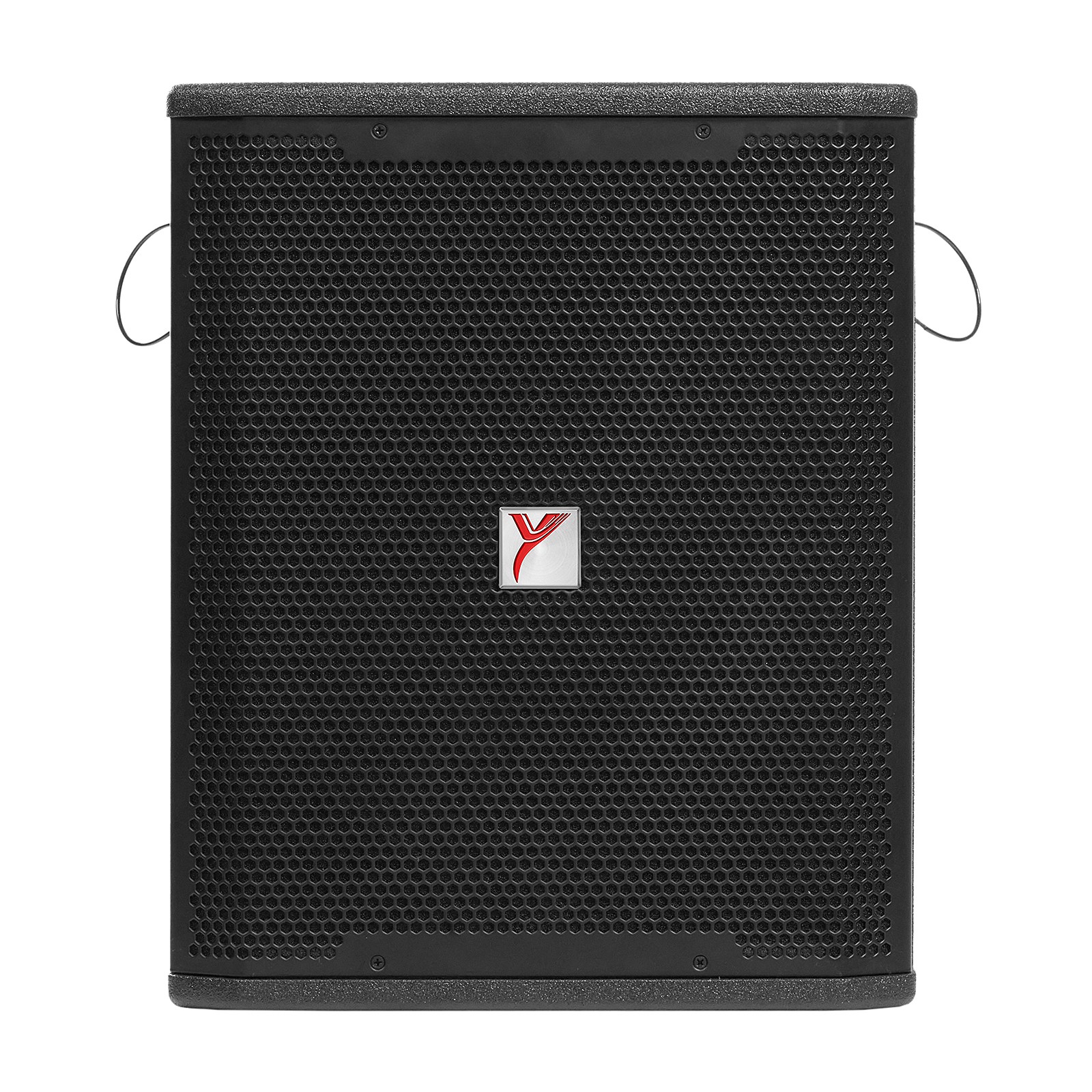

J3RPTK-FS-SW

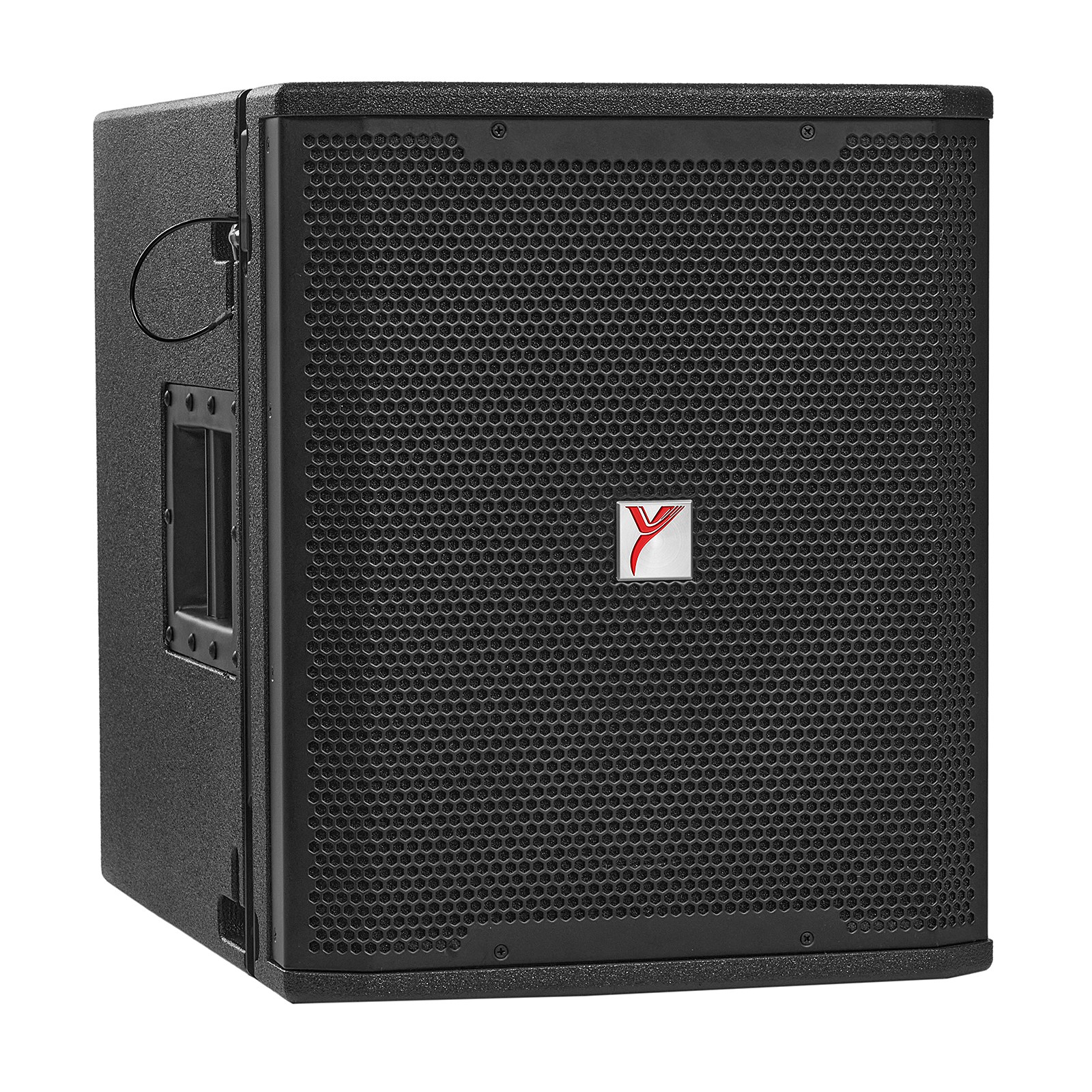

Single 15-inch Subwoofer
Direct-radiating low-frequency design with clean bass reproduction, supporting flown or ground-stacked deployment and designed to pair with J2.
Product Overview
Direct-radiating low-frequency design with clean bass reproduction, supporting flown or ground-stacked deployment and designed to pair with J2.
Applications
Small & medium live events; banquet halls; bars; sports venues; performing arts centers
Key Features
Direct-radiating low-frequency design with clean bass reproduction, supporting flown or ground-stacked deployment and designed to pair with J2.

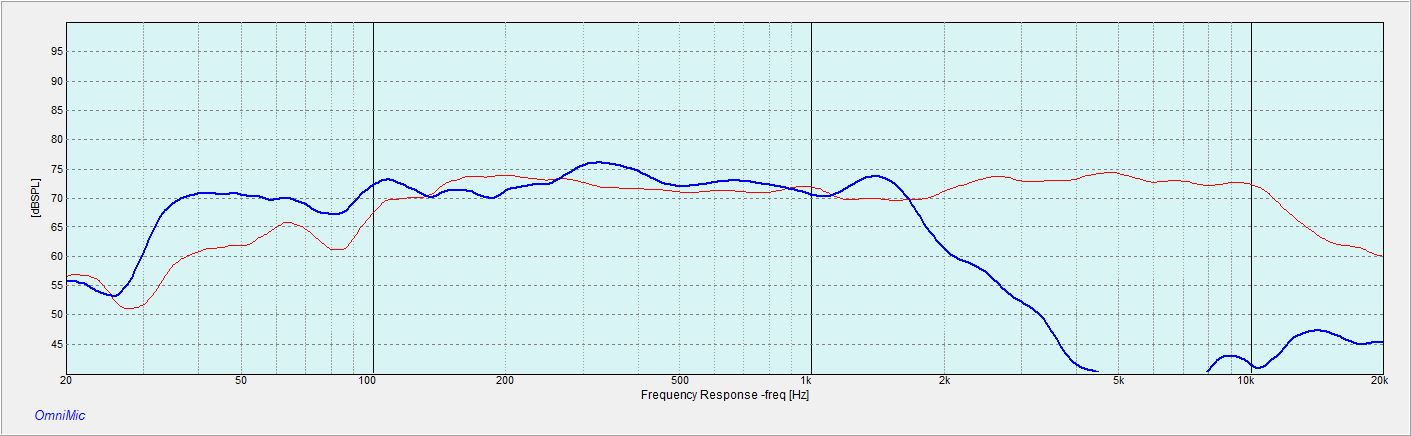

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 35Hz-1.7KHz(±3dB) |
| Sensitivity (1W, 1m) | 90dB |
| Nominal impedance | 8Ω |
| AES power | 500W |
| Peak power | 1000W |
| LF driver | 15" 75mm 8Ω (Ferrite magnet） |
| Maximum SPL / Peak | 117dB/123dB |
| Connectors | (NEUTRIK NL4)*2 +1-1 |
| Cabinet material | Birch wood |
| Dimensions (W × H × D) | W597*H508*D590mm |
| Weight | 33.2kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
