Subwoofers
D2RPTK-FS-SW

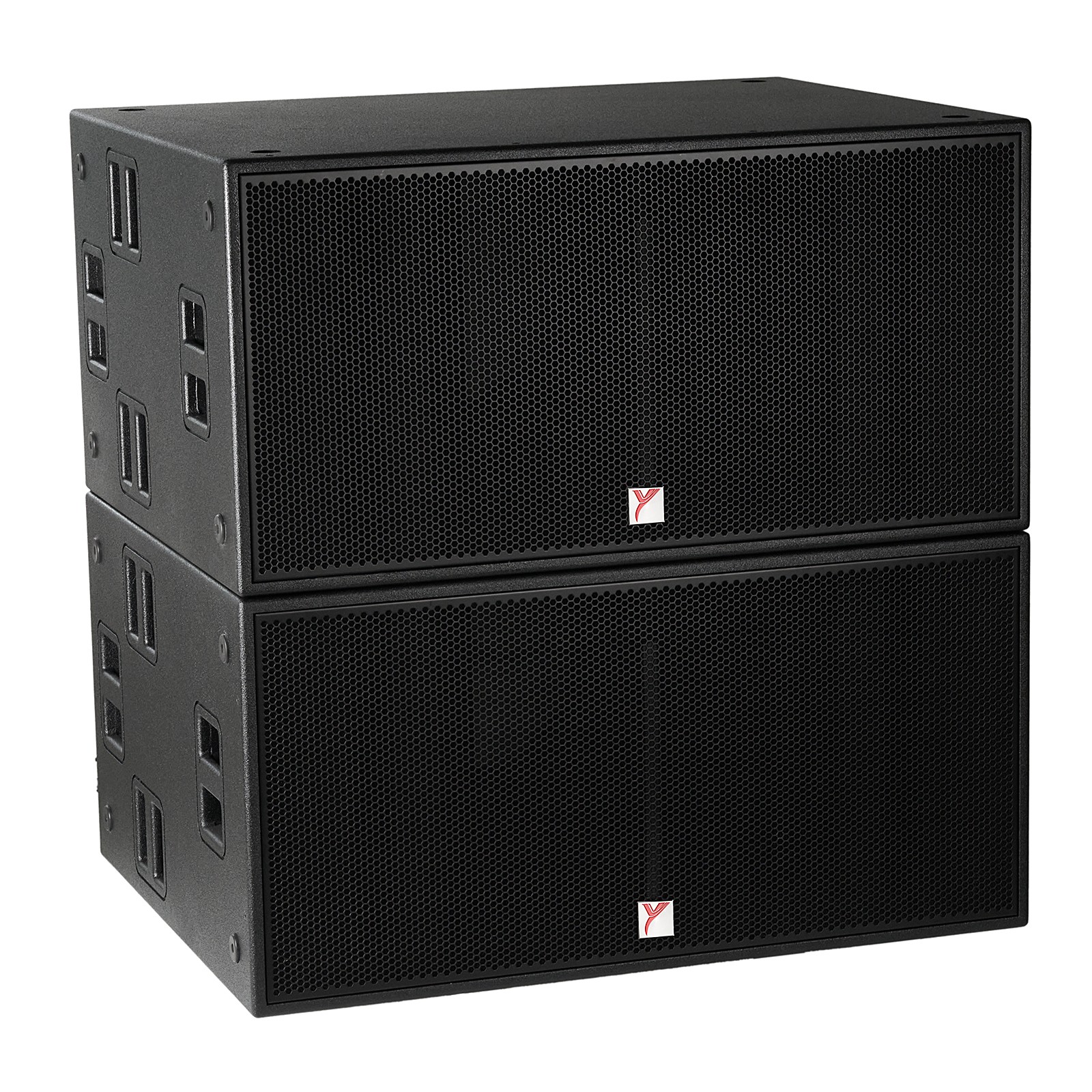

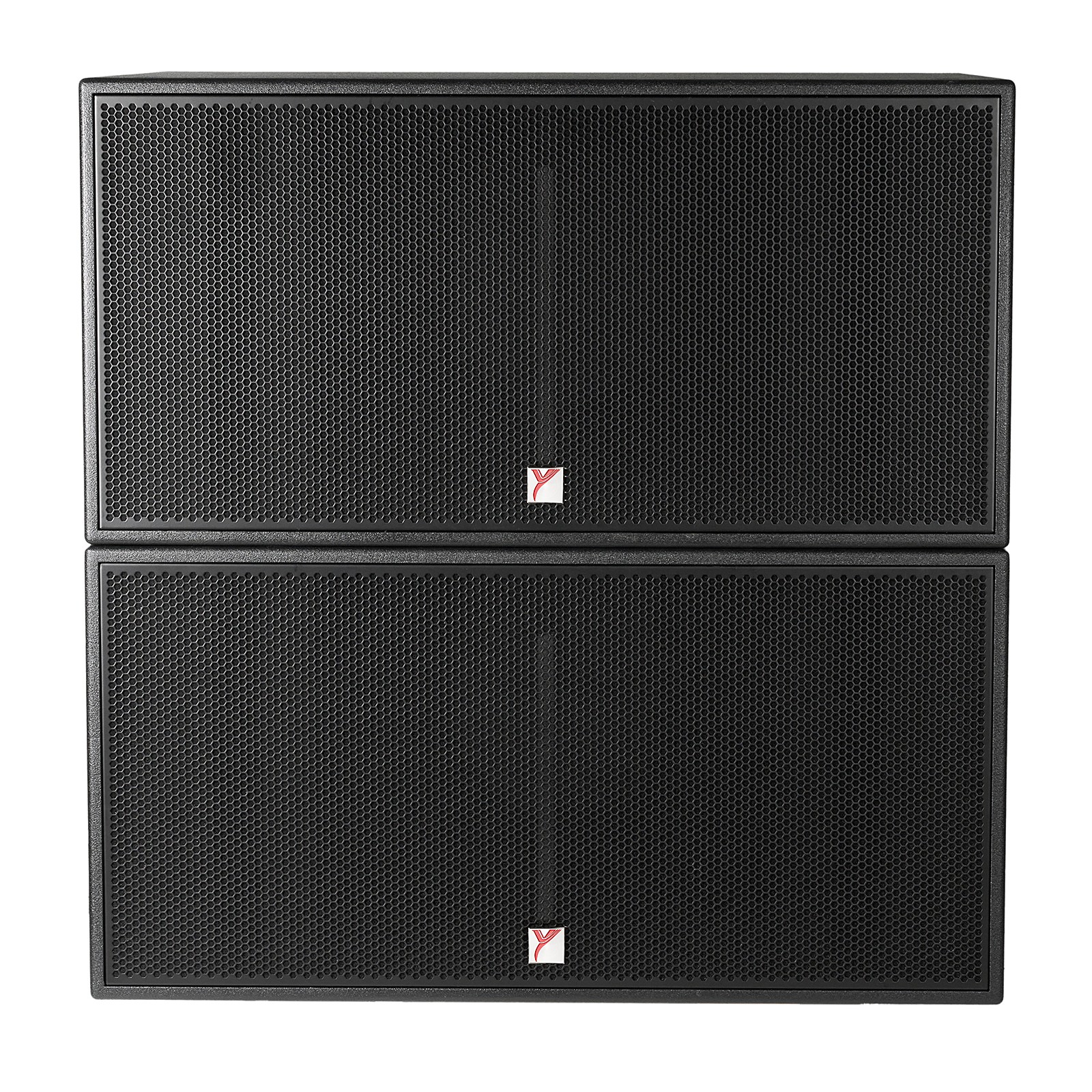

Dual 18-inch Subwoofer
Guided horn-loaded low-frequency design delivering high SPL, strong output and extended throw for professional low-frequency reinforcement.
Product Overview
Guided horn-loaded low-frequency design delivering high SPL, strong output and extended throw for professional low-frequency reinforcement.
Applications
Small & medium live events; banquet halls; bars; sports venues; performing arts centers; conference centers
Key Features
Guided horn-loaded low-frequency design delivering high SPL, strong output and extended throw for professional low-frequency reinforcement.

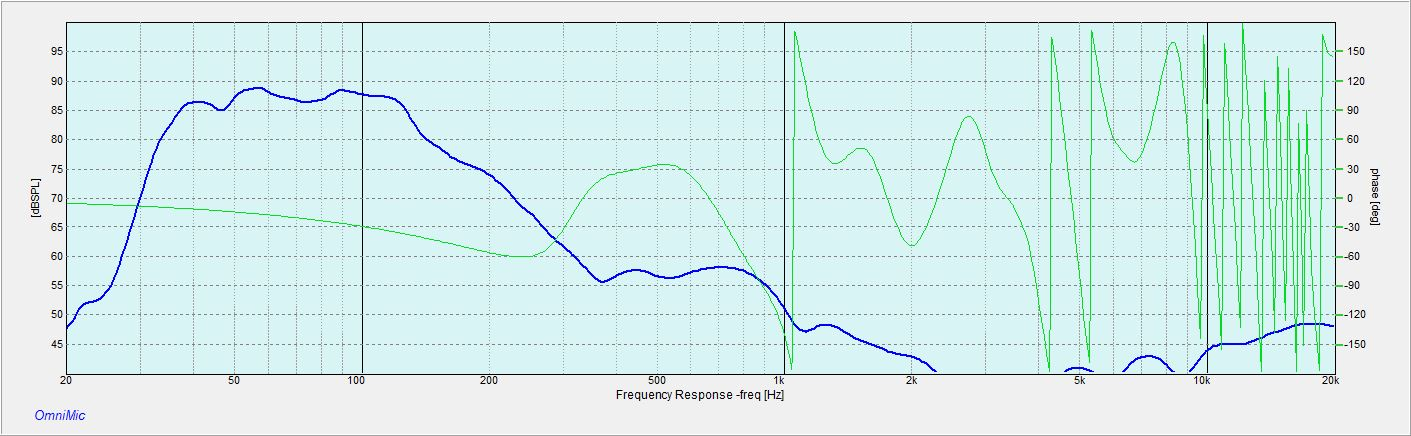

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 35Hz-200Hz(±3dB) |
| Sensitivity (1W, 1m) | 106dB |
| Nominal impedance | 4Ω |
| AES power | 1600W |
| Peak power | 4800W |
| LF driver | 18" 100mm 8Ωx2(Neo） |
| Maximum SPL / Peak | 142dB/148dB |

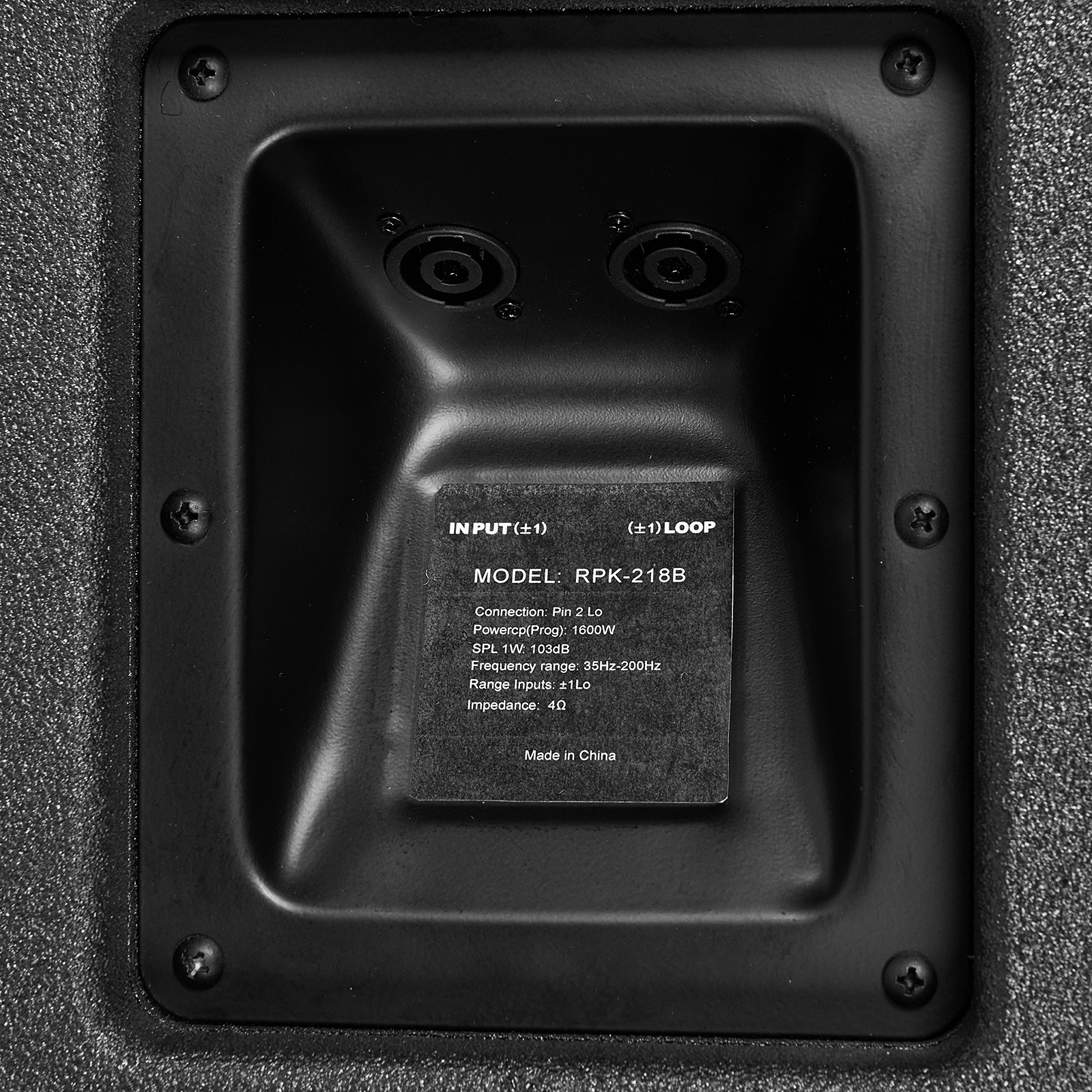

| Connectors | (NEUTRIK NL4)*2 +1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W1160*H920*D585mm |
| Weight | 103.4kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
