Stage Monitor Systems
L1RPTK-FS-SM

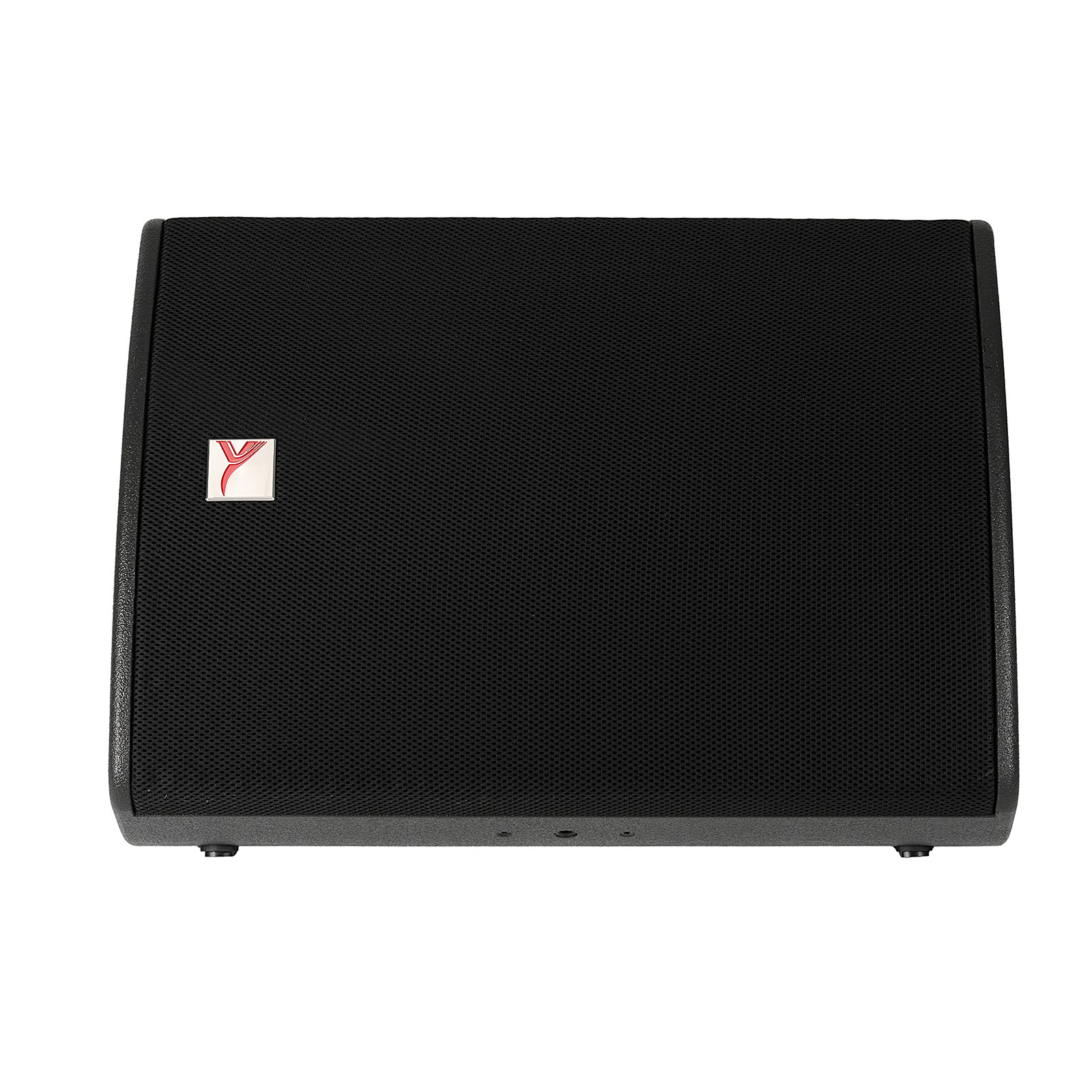

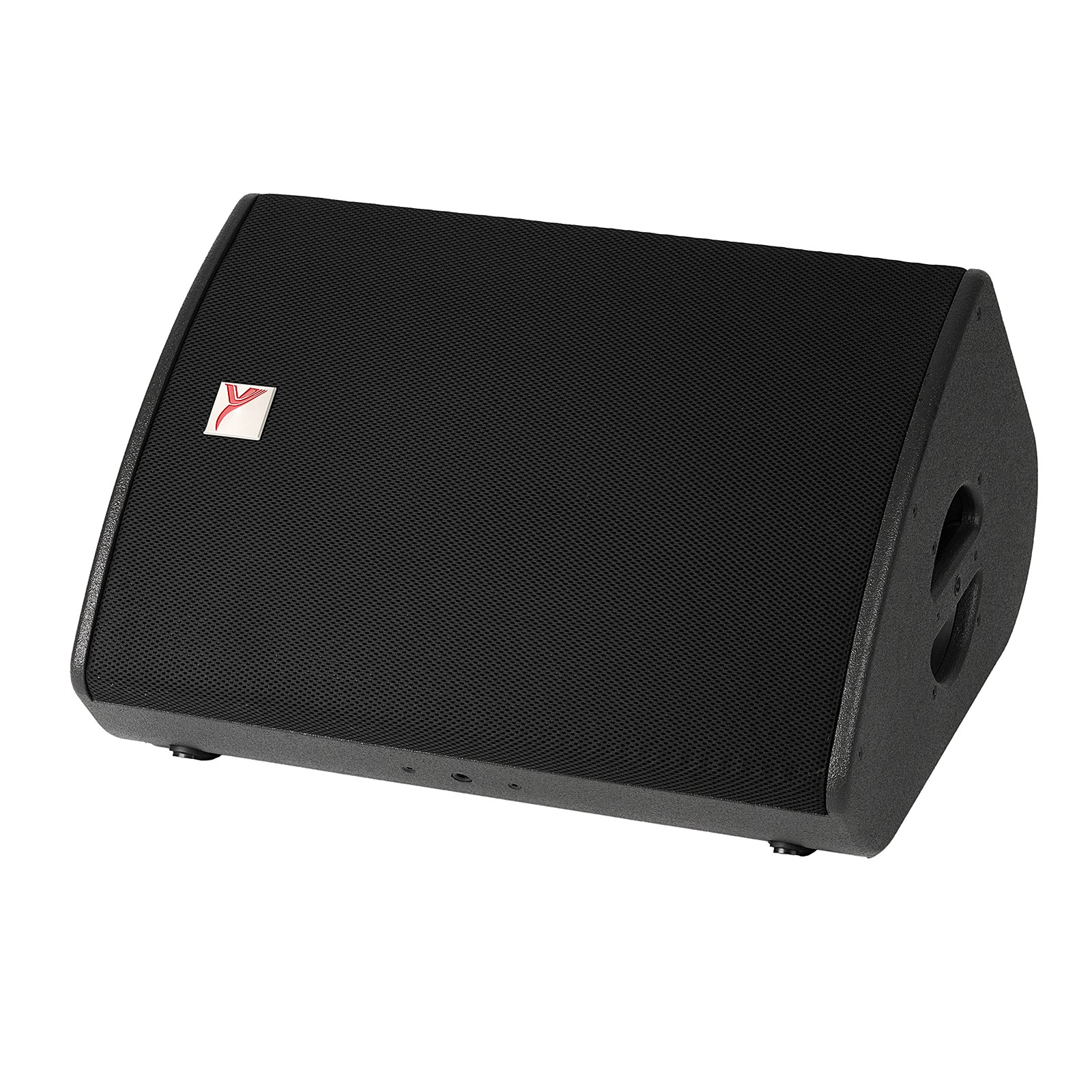

15-inch Coaxial Stage Monitor
Compact two-way monitor with low weight, clear vocal reproduction and tight low frequencies. A streamlined port design helps improve feedback resistance on stage.
Product Overview
Compact two-way monitor with low weight, clear vocal reproduction and tight low frequencies. A streamlined port design helps improve feedback resistance on stage.
Applications
Stage monitoring; performer monitoring; short-throw main reinforcement
Key Features
Compact two-way monitor with low weight, clear vocal reproduction and tight low frequencies. A streamlined port design helps improve feedback resistance on stage.

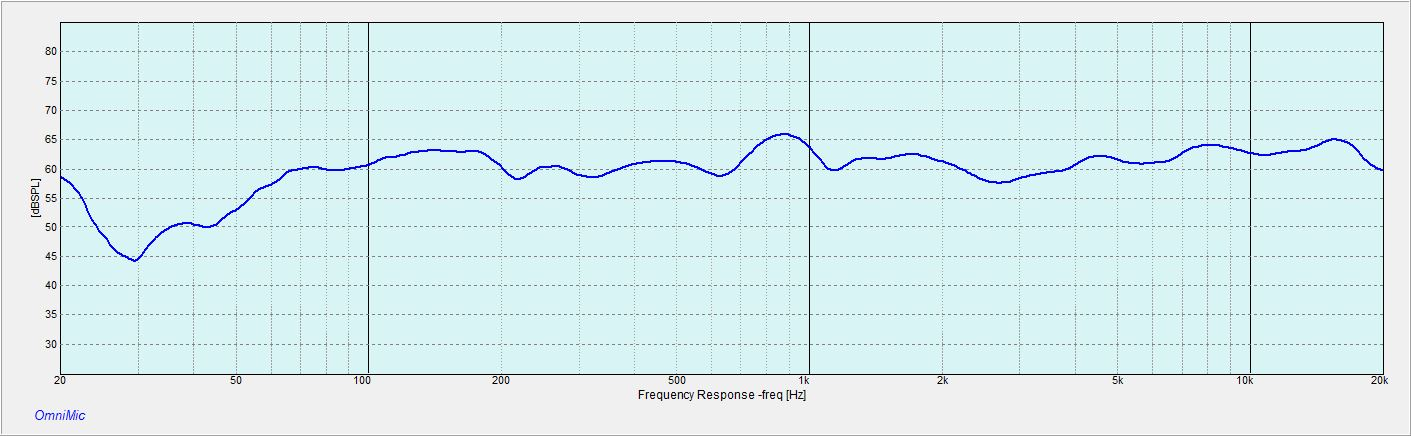

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 50Hz-18KHz(±3dB) |
| Sensitivity (1W, 1m) | 103dB |
| Nominal impedance | 8Ω |
| AES power | 500W |
| Peak power | 1500W |
| Coverage | 40°Hor*60°Ver |
| Driver configuration | 15" 75mm （1.5" Throat diameter）75mm 3"(Neo） |
| Maximum SPL / Peak | 130dB/136dB |

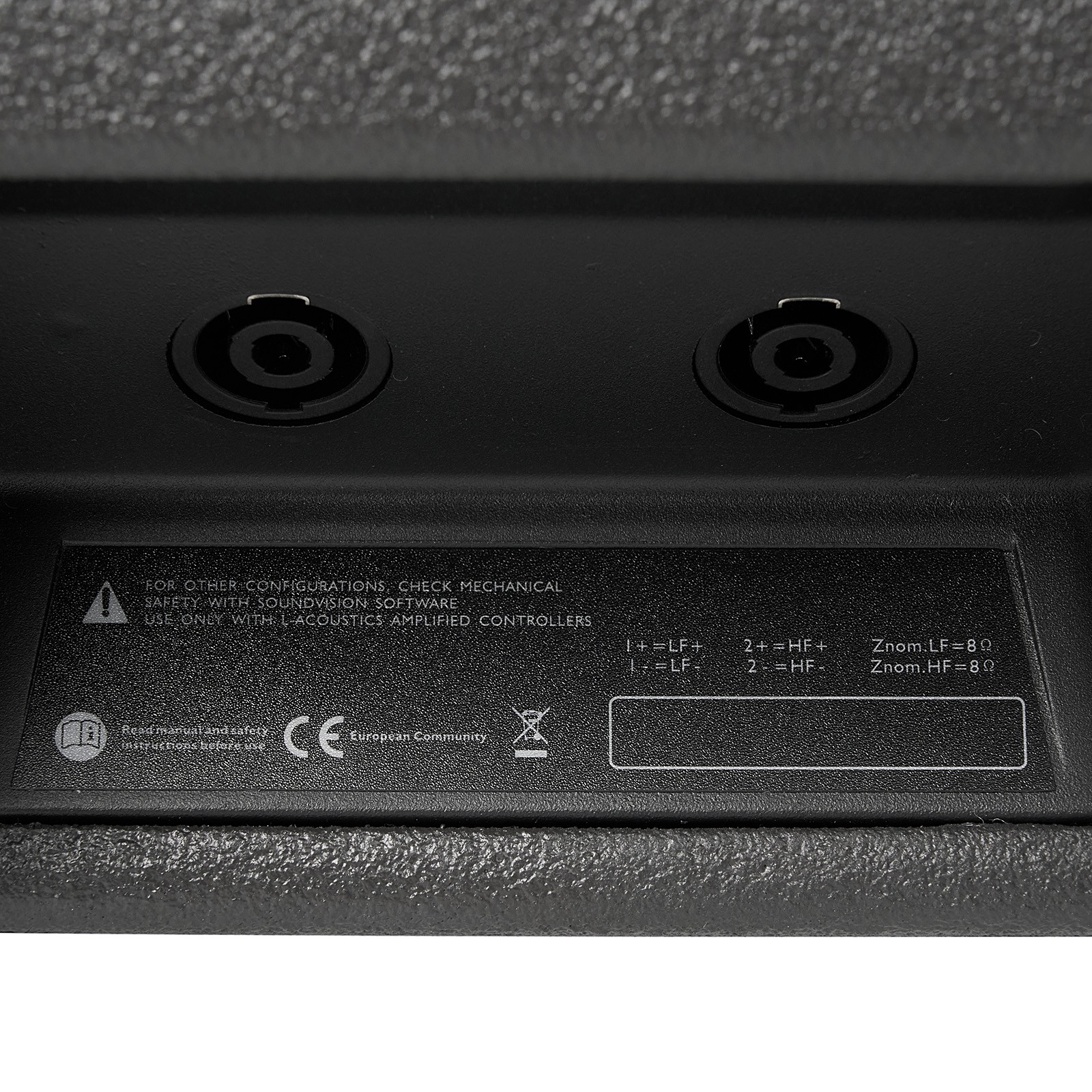

| Connectors | (NEUTRIK NL4)*2 +1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W430*H580*D375mm |
| Weight | 19.8kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
