Stage Monitor Systems
J4RPTK-FS-SM

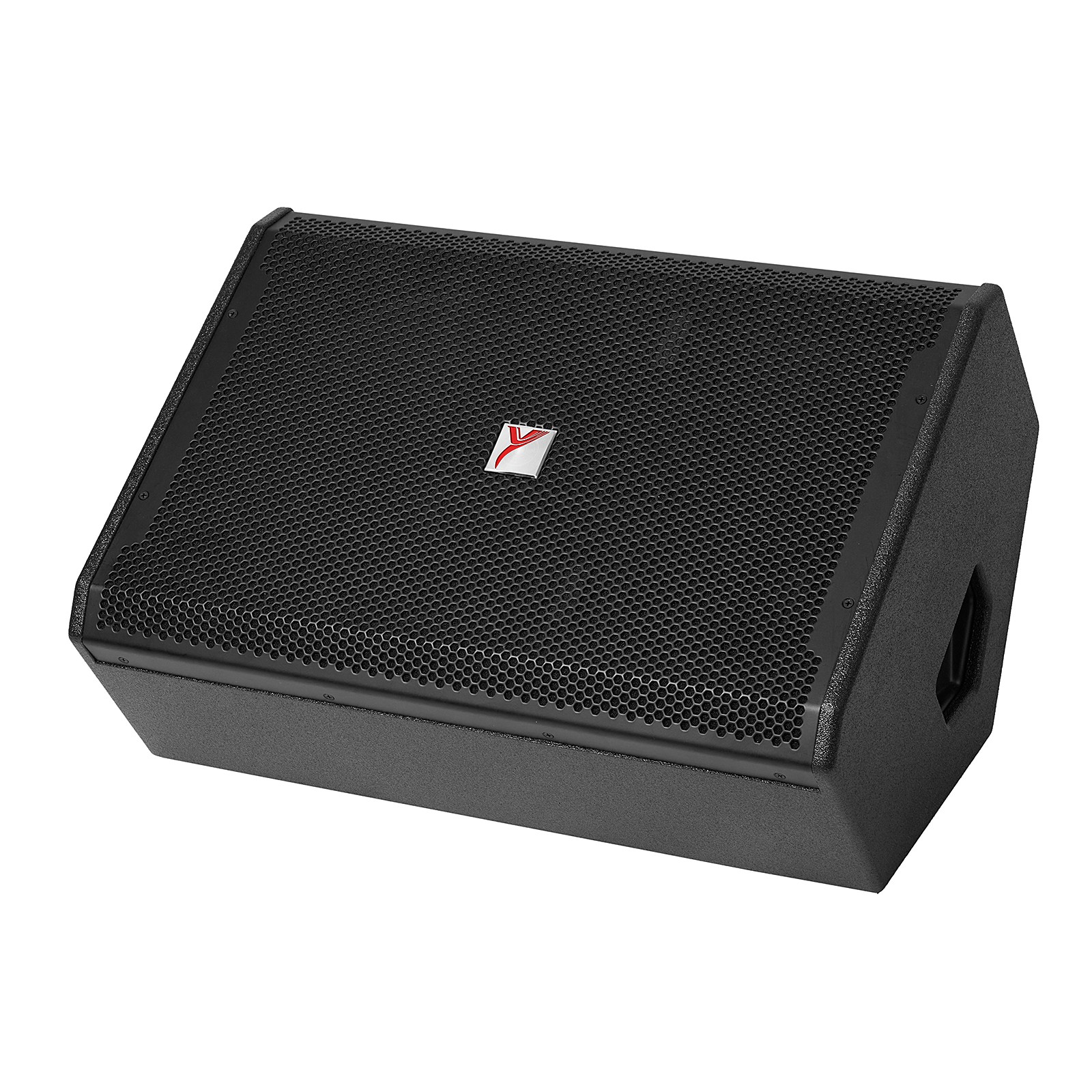

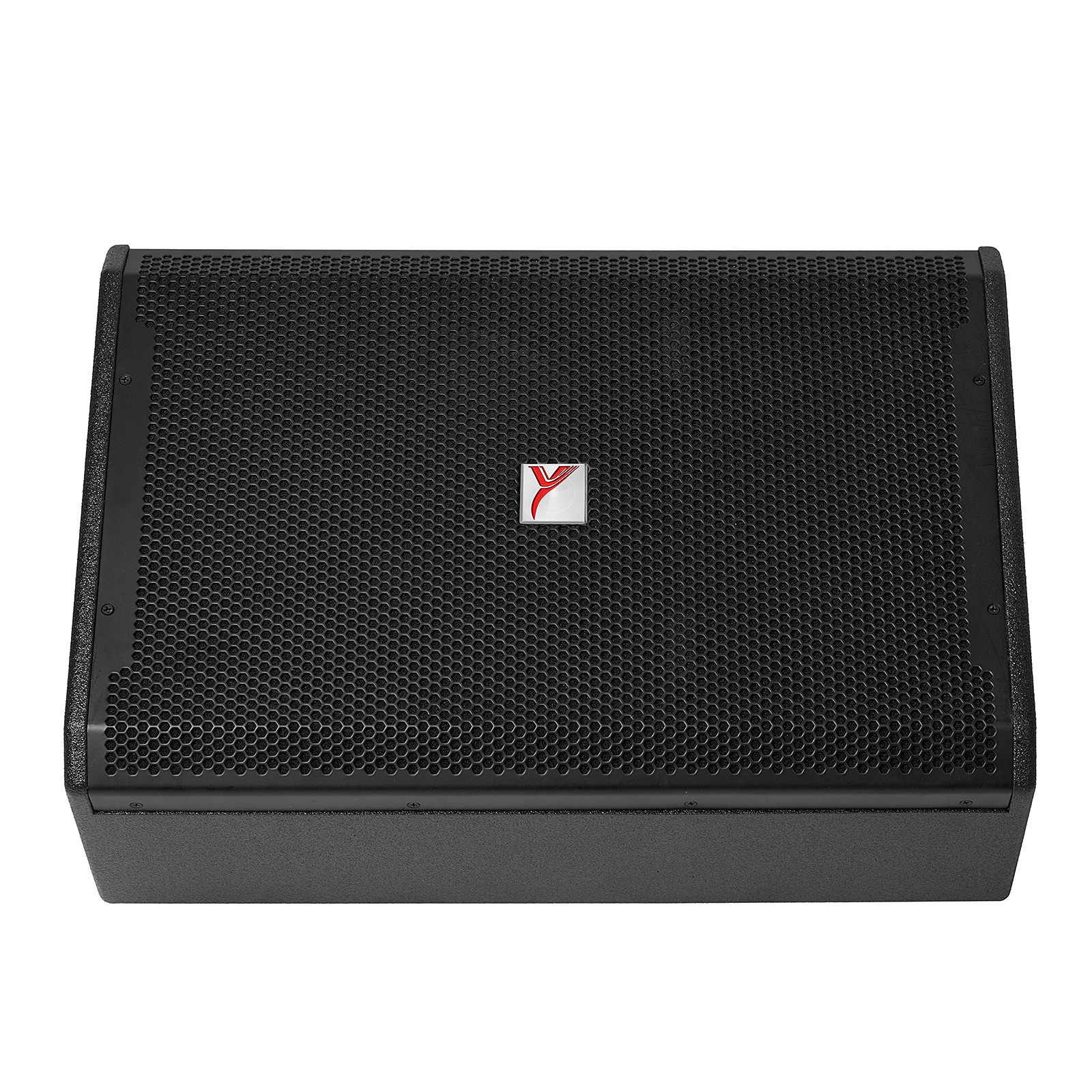

15-inch Stage Monitor
Two-way stage monitor with wide coverage, solid midrange, warm vocal character and smooth high-frequency reproduction.
Product Overview
Two-way stage monitor with wide coverage, solid midrange, warm vocal character and smooth high-frequency reproduction.
Applications
Stage monitoring; performer monitoring; short-throw main reinforcement
Key Features
Two-way stage monitor with wide coverage, solid midrange, warm vocal character and smooth high-frequency reproduction.

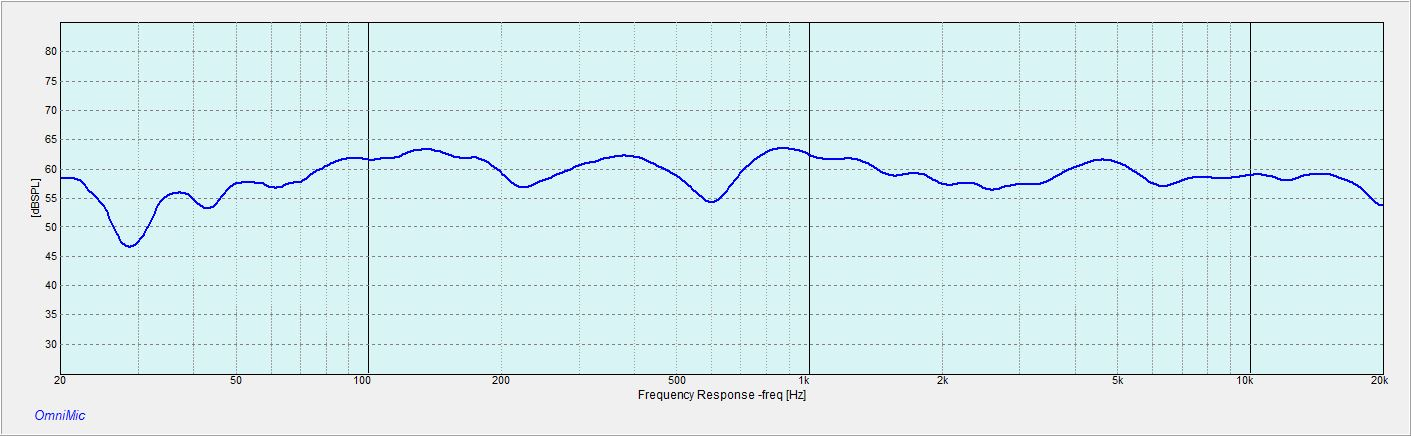

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 50Hz-17KHz(±3dB) |
| Sensitivity (1W, 1m) | 102dB |
| Nominal impedance | 8Ω |
| AES power | 500W |
| Peak power | 1500W |
| Coverage | 50°Hor*90°Ver |
| Driver configuration | 15" 75mm （1" Throat diameter） 75mm 3" (Ferrite magnet） |
| Maximum SPL / Peak | 129dB/135dB |

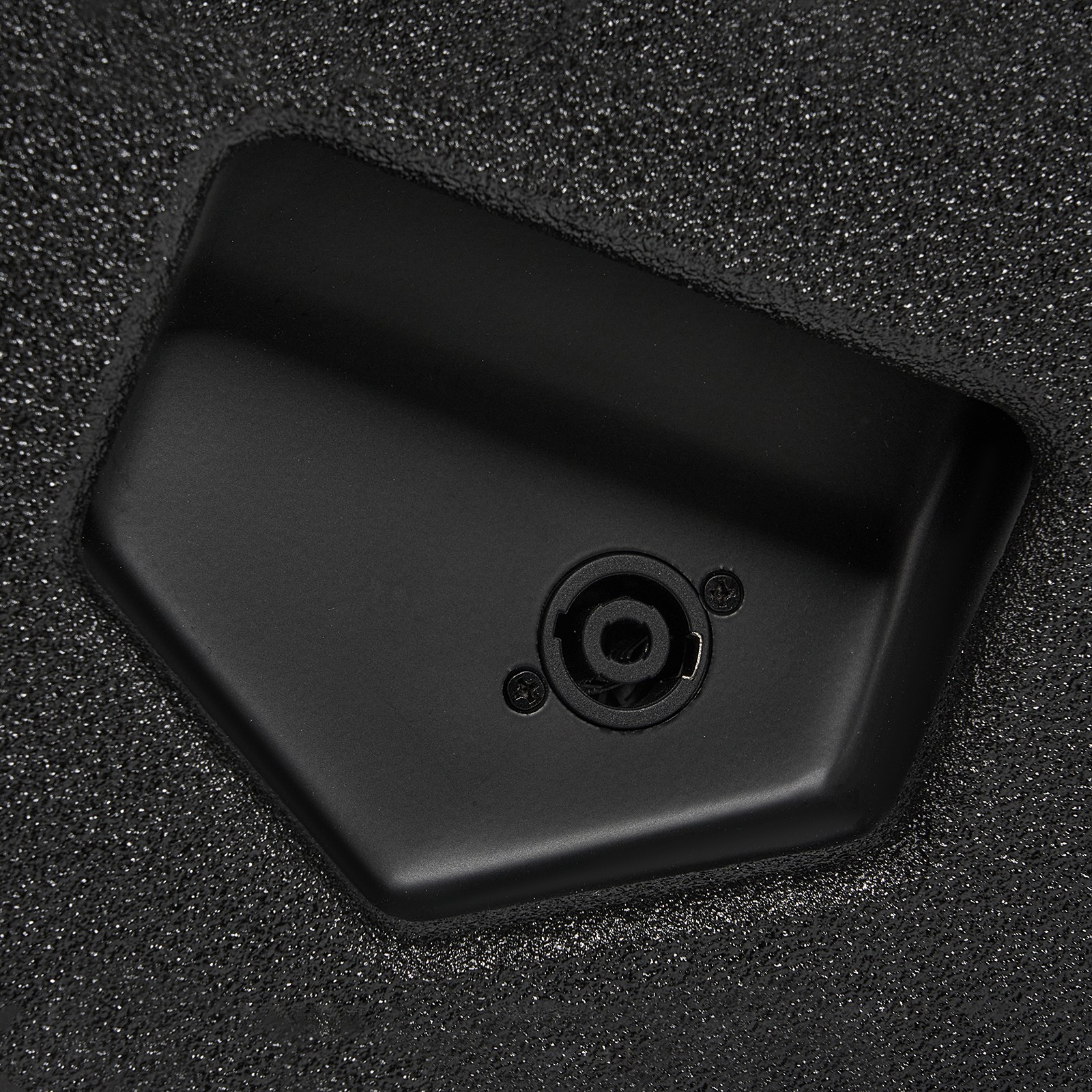

| Connectors | (NEUTRIK NL4)*2 +1-1 |
| Cabinet material | 18mm Mixed birch wood |
| Dimensions (W × H × D) | W432*H629*D324mm |
| Weight | 24.8kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
