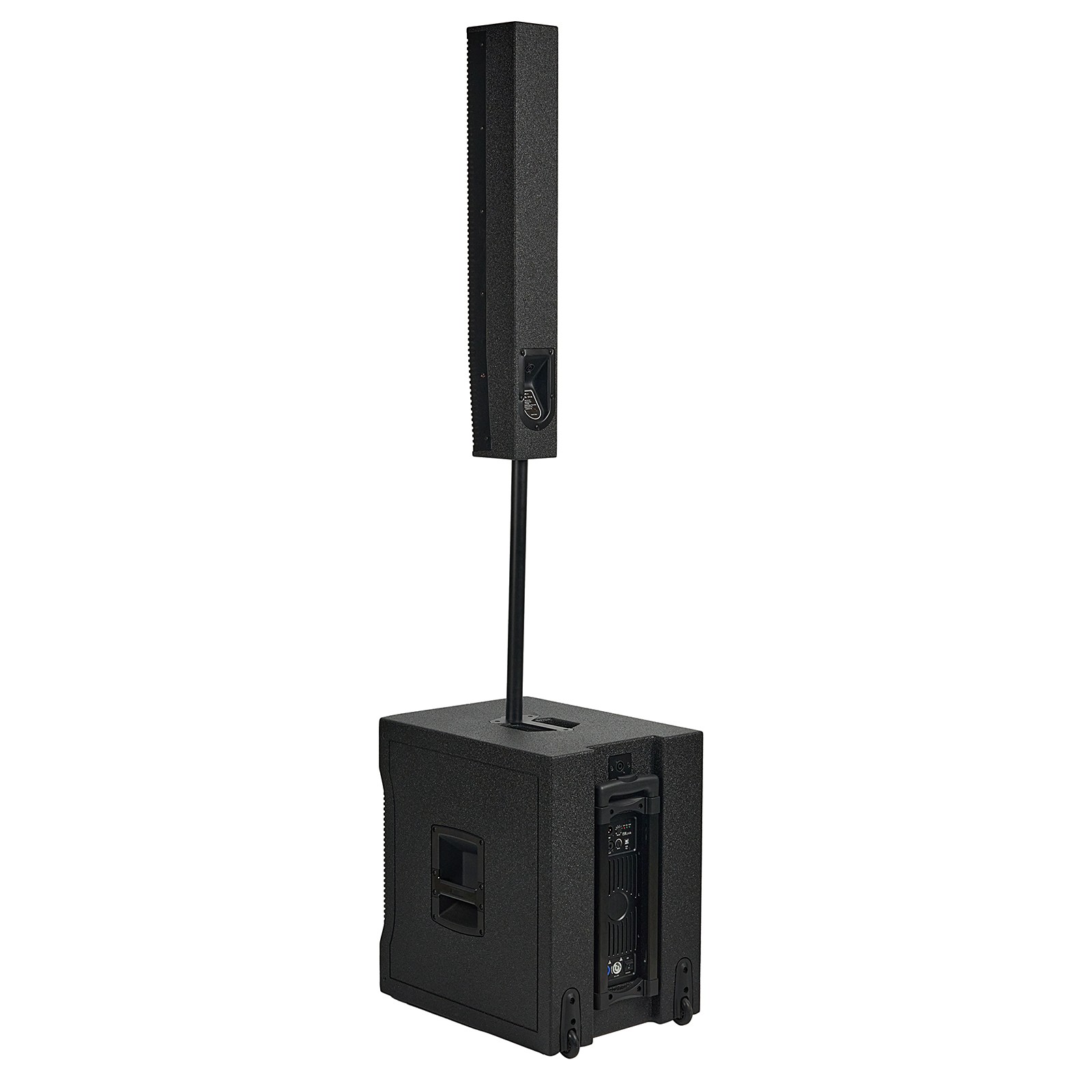

Portable Speaker System
415RPTK-FS-PSS
15-inch Active Subwoofer + 4-inch Full-Range Column System
A compact system combining a trolley-style 15-inch active subwoofer with a 4-inch full-range column, offering easy connection, mobile deployment and smooth sound reproduction.
Product Overview
A compact system combining a trolley-style 15-inch active subwoofer with a 4-inch full-range column, offering easy connection, mobile deployment and smooth sound reproduction.
Applications
Small live events; banquet halls; restaurants & bars; conference centers
Key Features
A compact system combining a trolley-style 15-inch active subwoofer with a 4-inch full-range column, offering easy connection, mobile deployment and smooth sound reproduction.

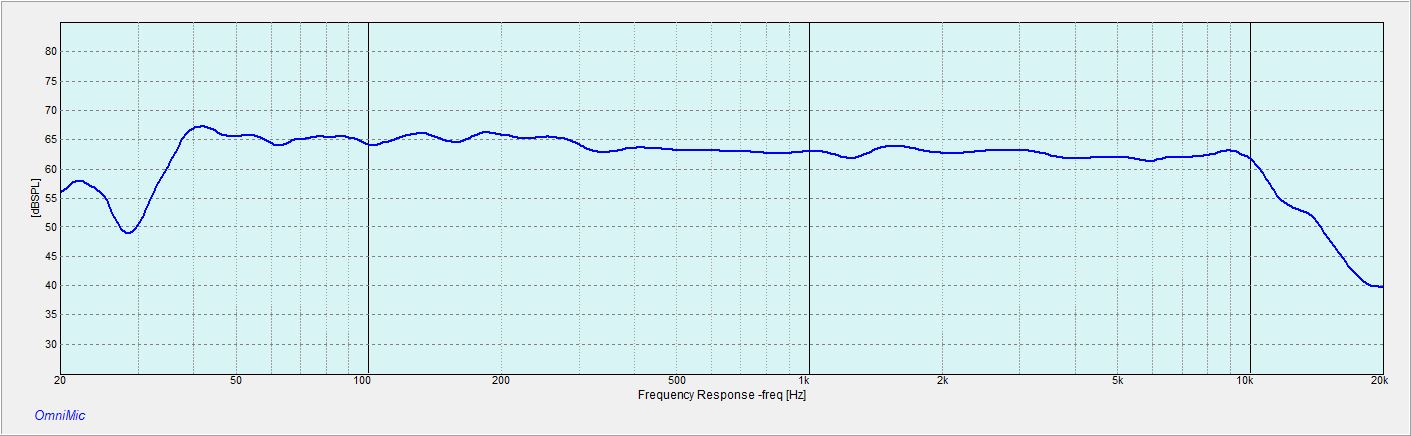

Frequency Response
System Integration
View system configurations and components →
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 38Hz-10KHz(±3dB) |
| Sensitivity (1W, 1m) | 98dB |
| Nominal impedance | 8Ω |
| AES power | 450W |
| Peak power | 1500W |
| LF driver | 15" 100mm 8Ω (Ferrite magnet） |
| Full-range driver | 4" 25mm 8Ωx8 (Neo） |
| Maximum SPL / Peak | 125dB /131dB |
| Connectors | (NEUTRIK NL4)*1 HF:+1-1 |
| Onboard amplification | Two channels 800WxLF 400WxHF |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | 15-inch：415x550x590 4-inch：310x700x465 |
| Weight | 15-inch：30kg 4-inch：7.2kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
