Point Source Speakers
M1RPTK-FS-FR

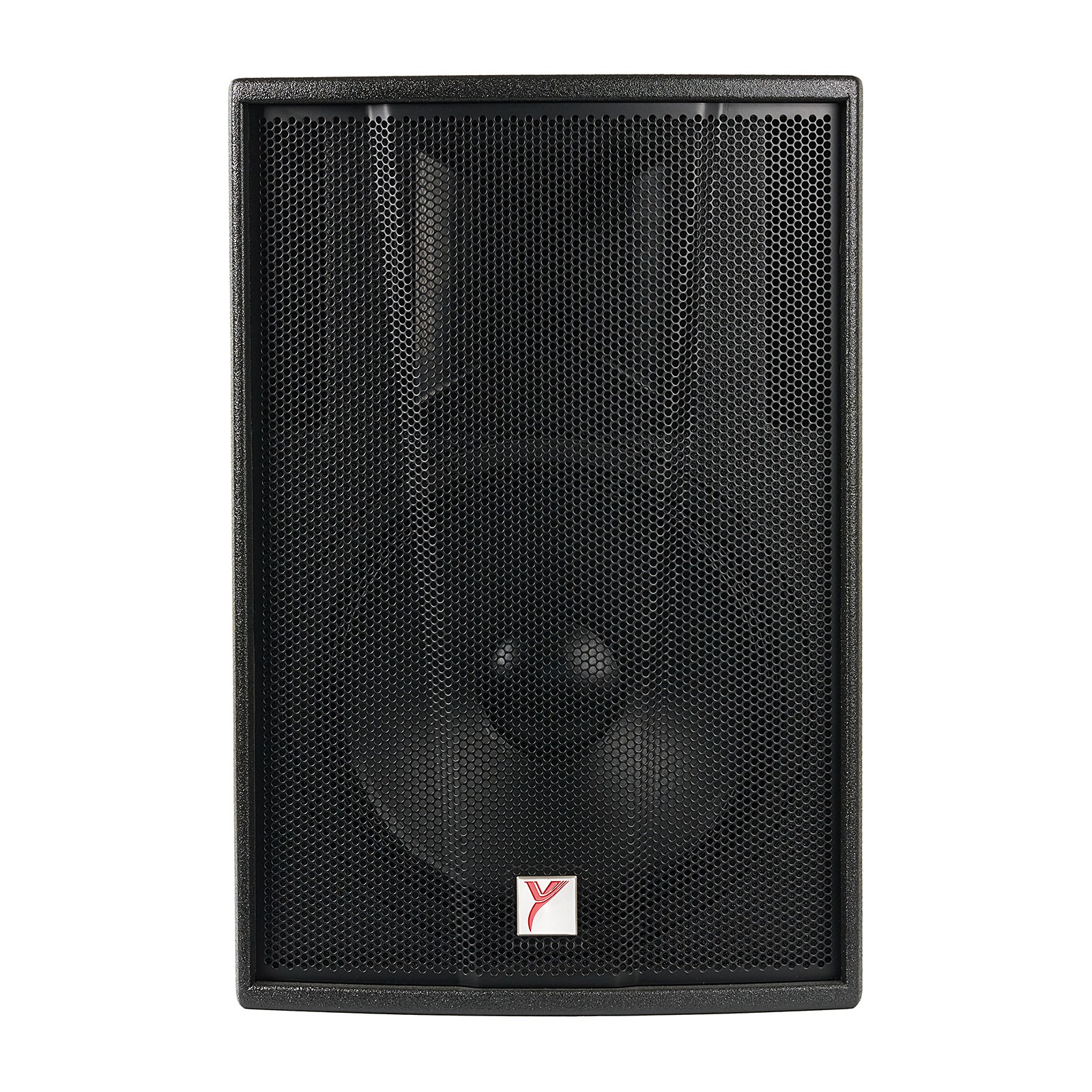

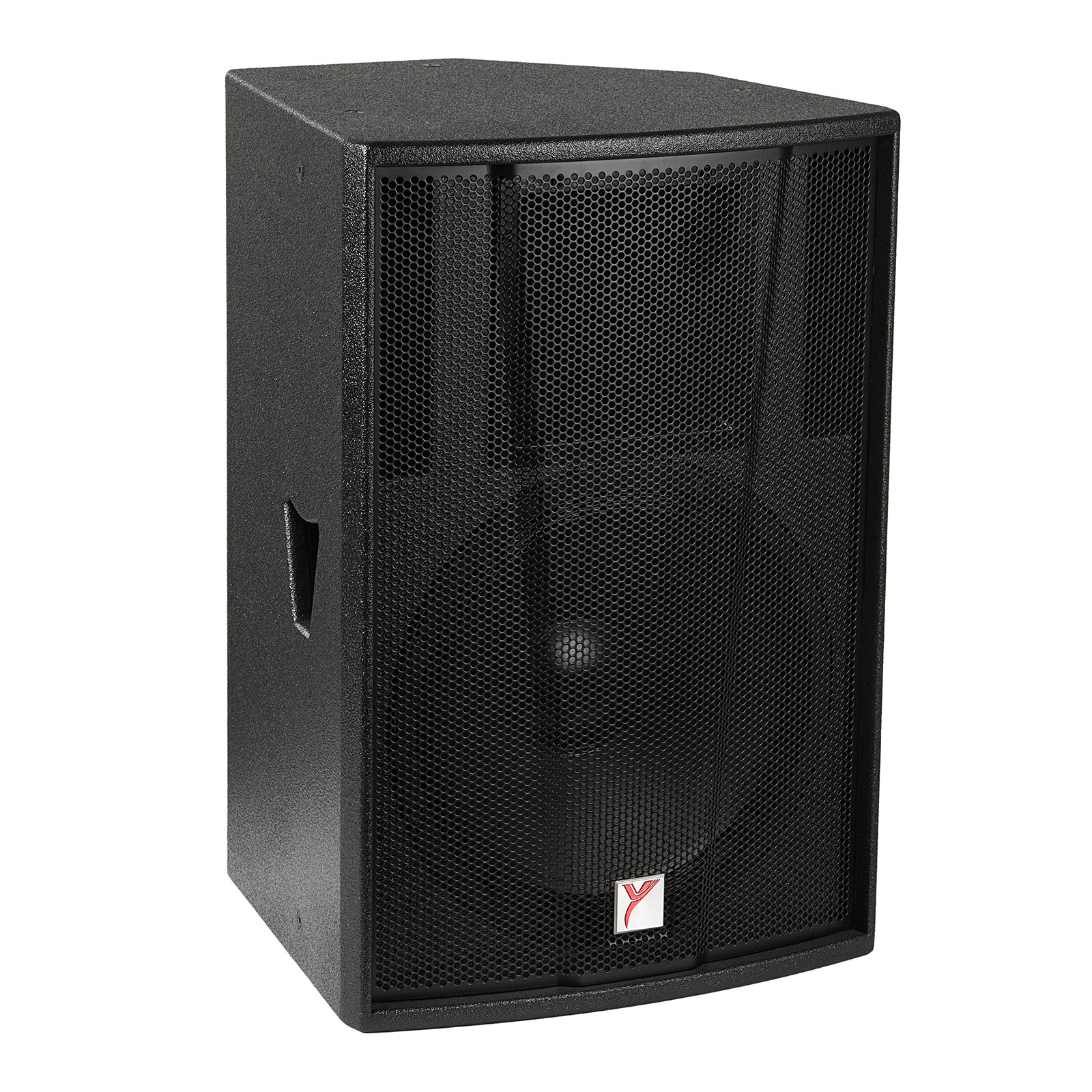

Single 15-inch Full-Range Speaker
High-energy two-way full-range design intended to pair with M2 as a classic system configuration for bars and indoor entertainment venues.
Product Overview
High-energy two-way full-range design intended to pair with M2 as a classic system configuration for bars and indoor entertainment venues.
Applications
Small indoor live events; banquet halls; bars; high-energy entertainment venues
Key Features
High-energy two-way full-range design intended to pair with M2 as a classic system configuration for bars and indoor entertainment venues.

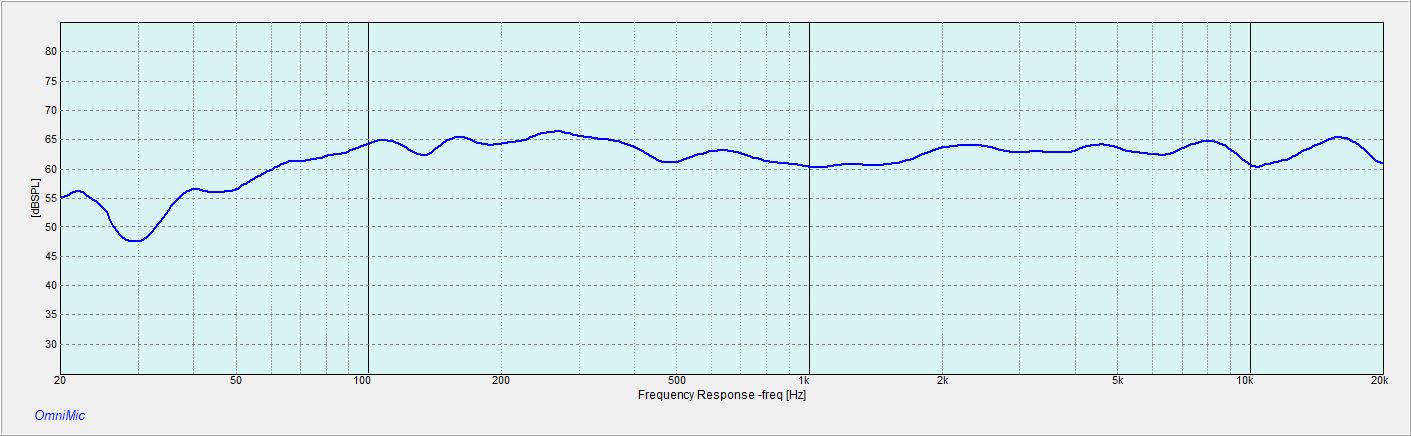

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 40Hz-20KHz(±3dB) |
| Sensitivity (1W, 1m) | 104dB |
| Nominal impedance | 8Ω |
| AES power | 600W |
| Peak power | 1800W |
| Coverage | 90°Hor*50°Ver |
| LF driver | 15" 75mm （1.5" Throat diameter）75mm 3"(Ferrite magnet） |
| Maximum SPL / Peak | 132dB /138dB |
| Connectors | (NEUTRIK NL4)*2 +1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W465*H691*D443mm |
| Weight | 32.4kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
