Point Source Speakers
J1RPTK-FS-FR

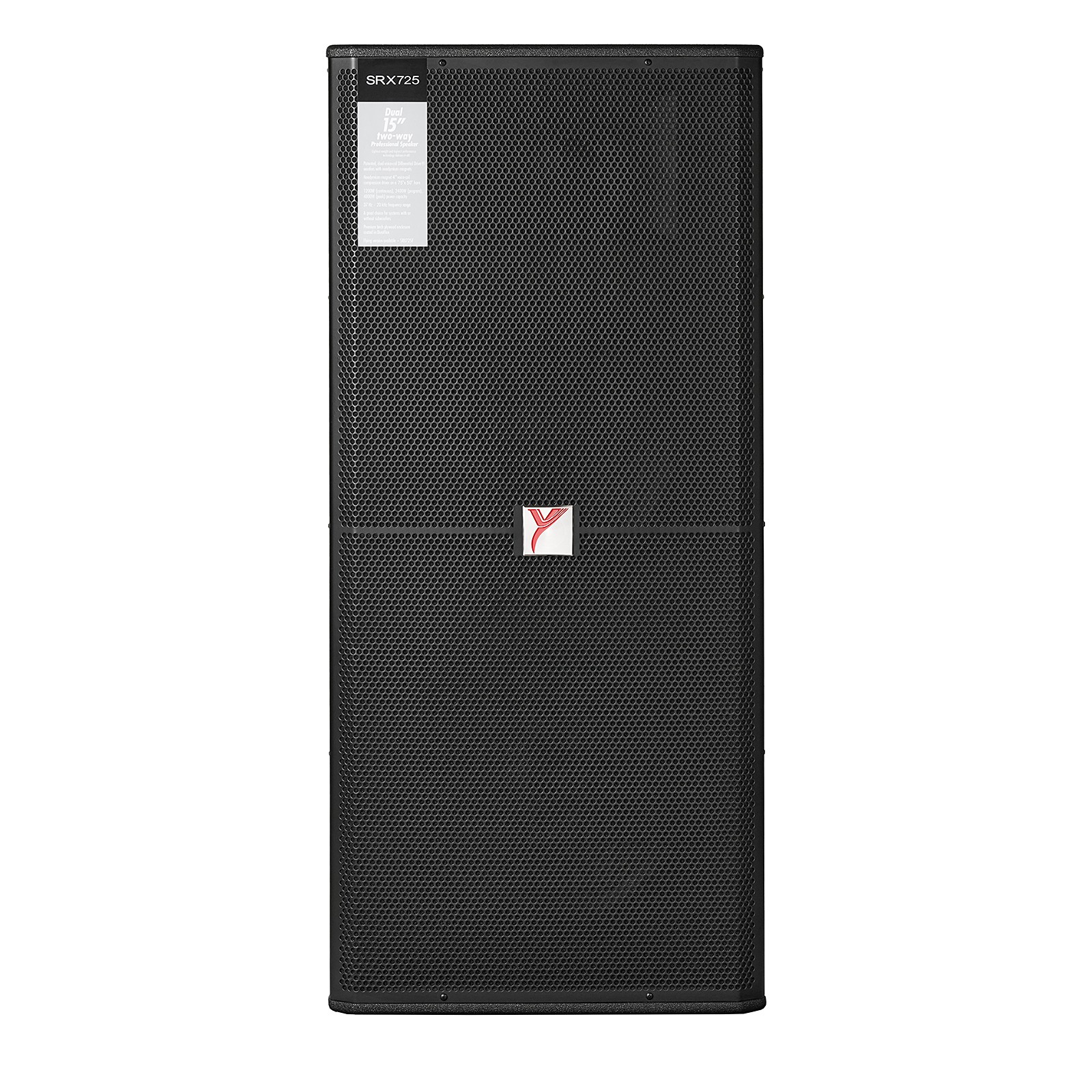

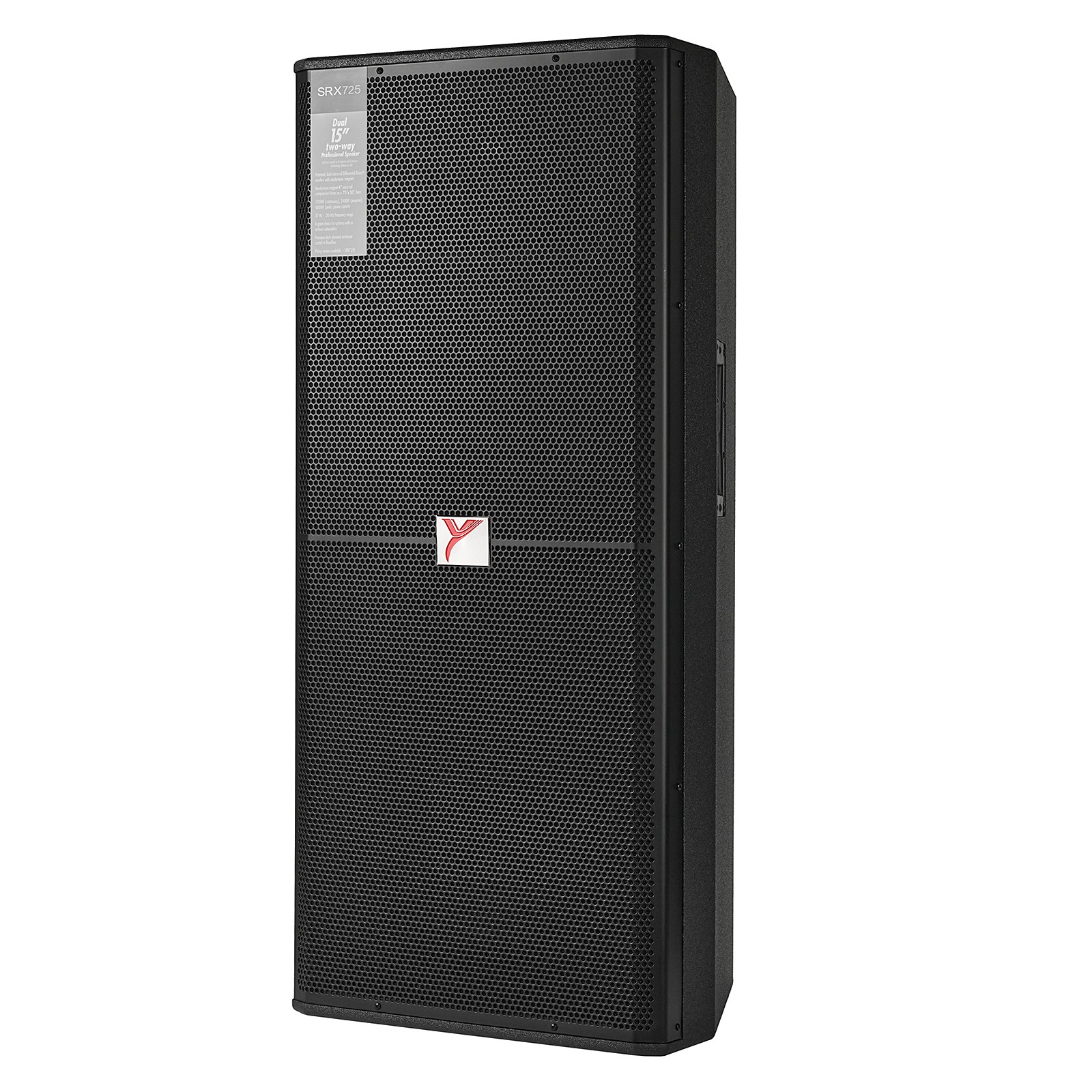

Dual 15-inch Full-Range Speaker
High-energy two-way full-range design with strong low-frequency output, full midrange and simple system connection for medium- to longer-distance reinforcement.
Product Overview
High-energy two-way full-range design with strong low-frequency output, full midrange and simple system connection for medium- to longer-distance reinforcement.
Applications
Small live events; banquet halls; wedding events
Key Features
High-energy two-way full-range design with strong low-frequency output, full midrange and simple system connection for medium- to longer-distance reinforcement.

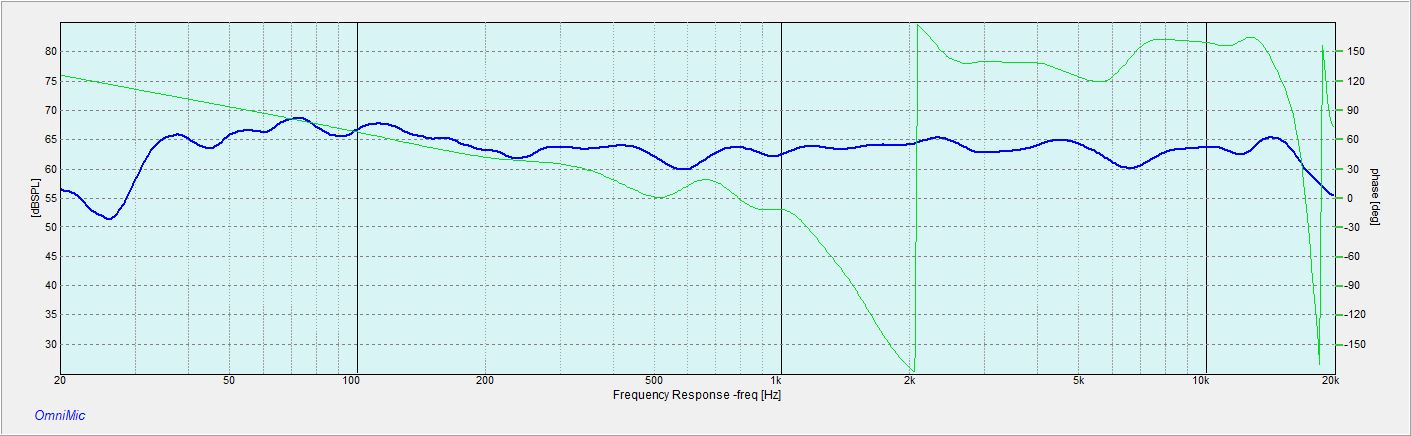

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 35Hz-16KHz(±3dB) |
| Sensitivity (1W, 1m) | 106dB |
| Nominal impedance | 4Ω |
| AES power | 1000W |
| Peak power | 3000W |
| Coverage | 70°Hor*50°Ver |
| Driver configuration | 15" 100mm ×2 （1" Throat diameter）75mm 3" (Ferrite magnet） |
| Maximum SPL / Peak | 136dB /142dB |
| Connectors | (NEUTRIK NL4)*2 +1-1 |
| Cabinet material | Birch wood |
| Dimensions (W × H × D) | W541*H1219*D508mm |
| Weight | 61.2kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
