L2RPTK-FS-LA
15-inch Two-Way Line Array Speaker

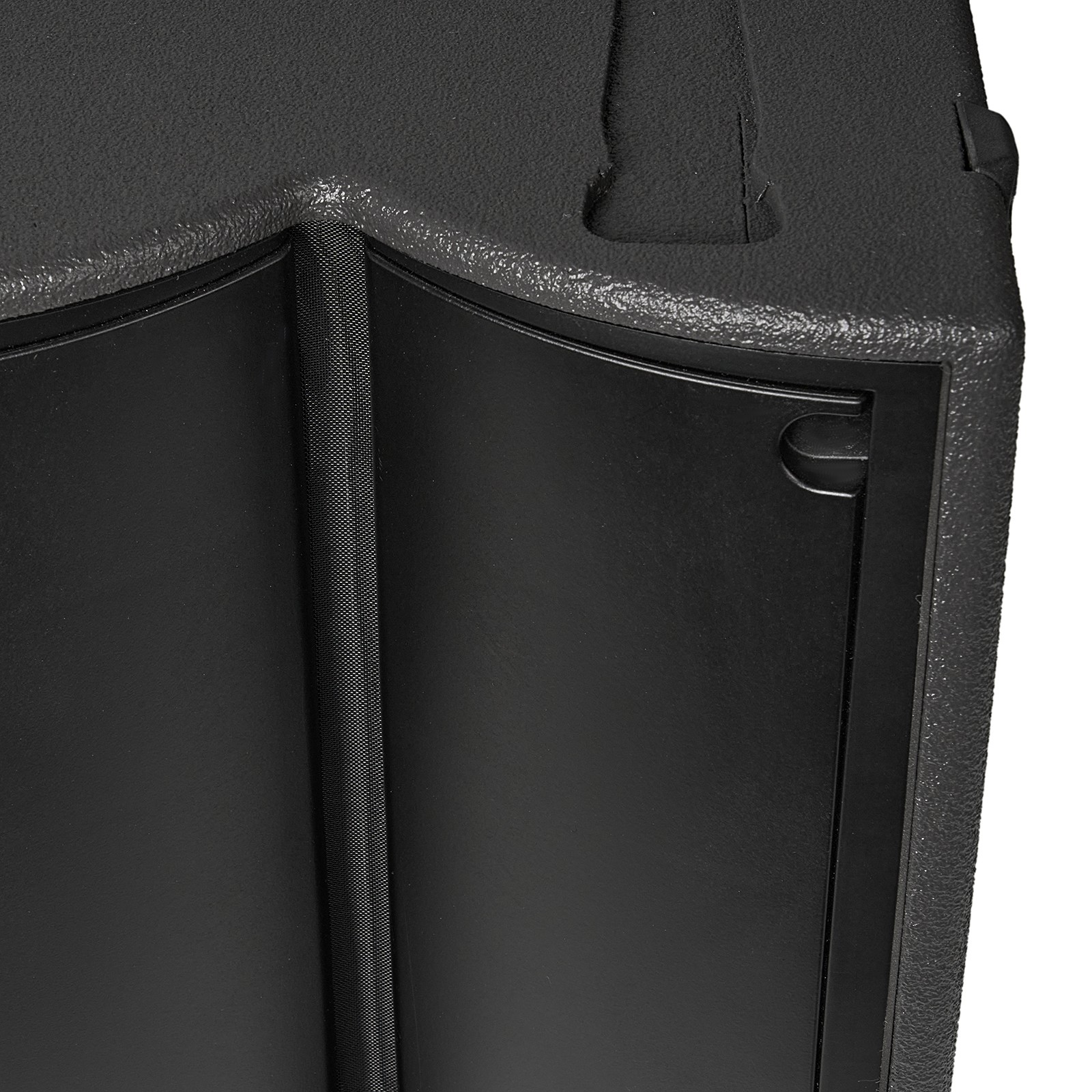

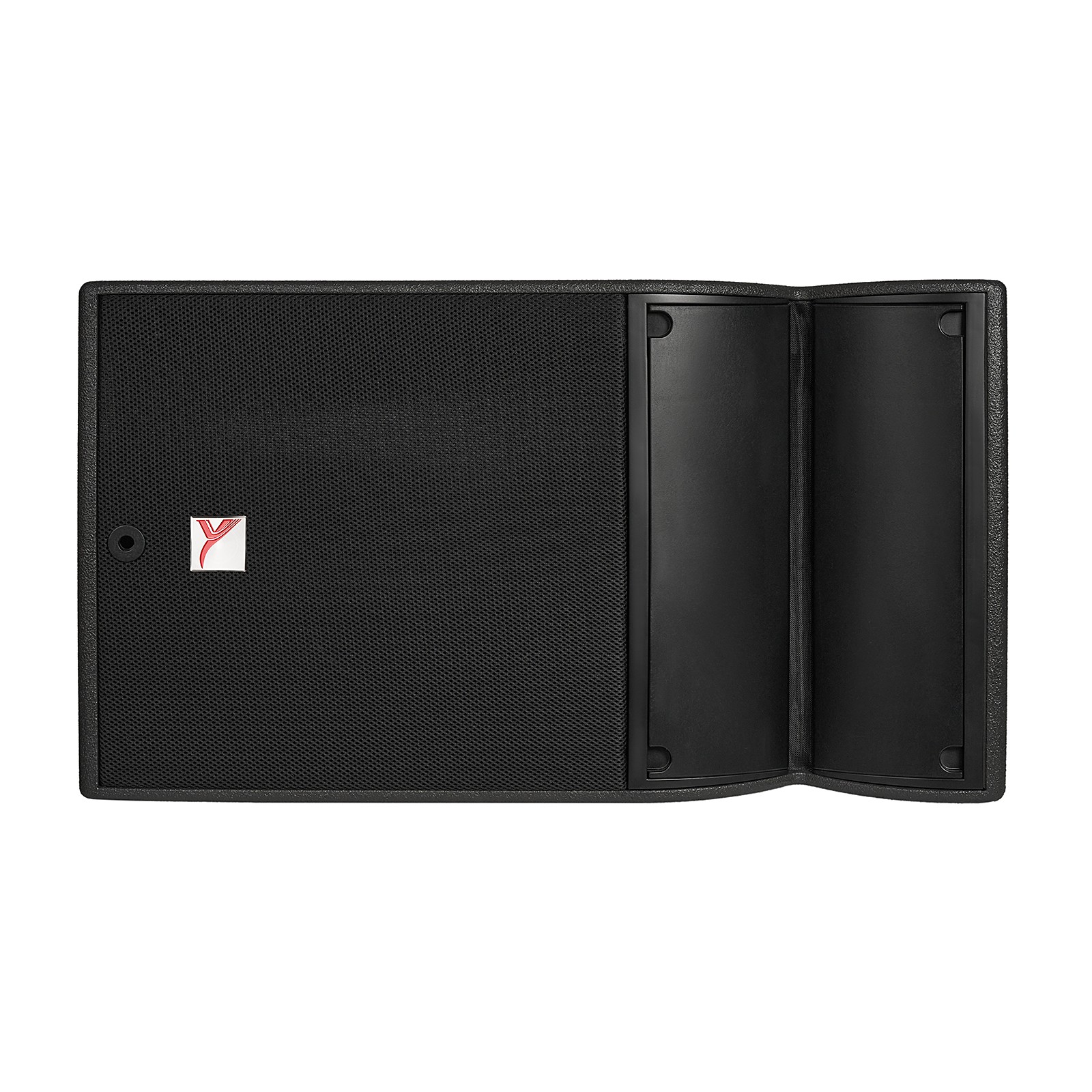

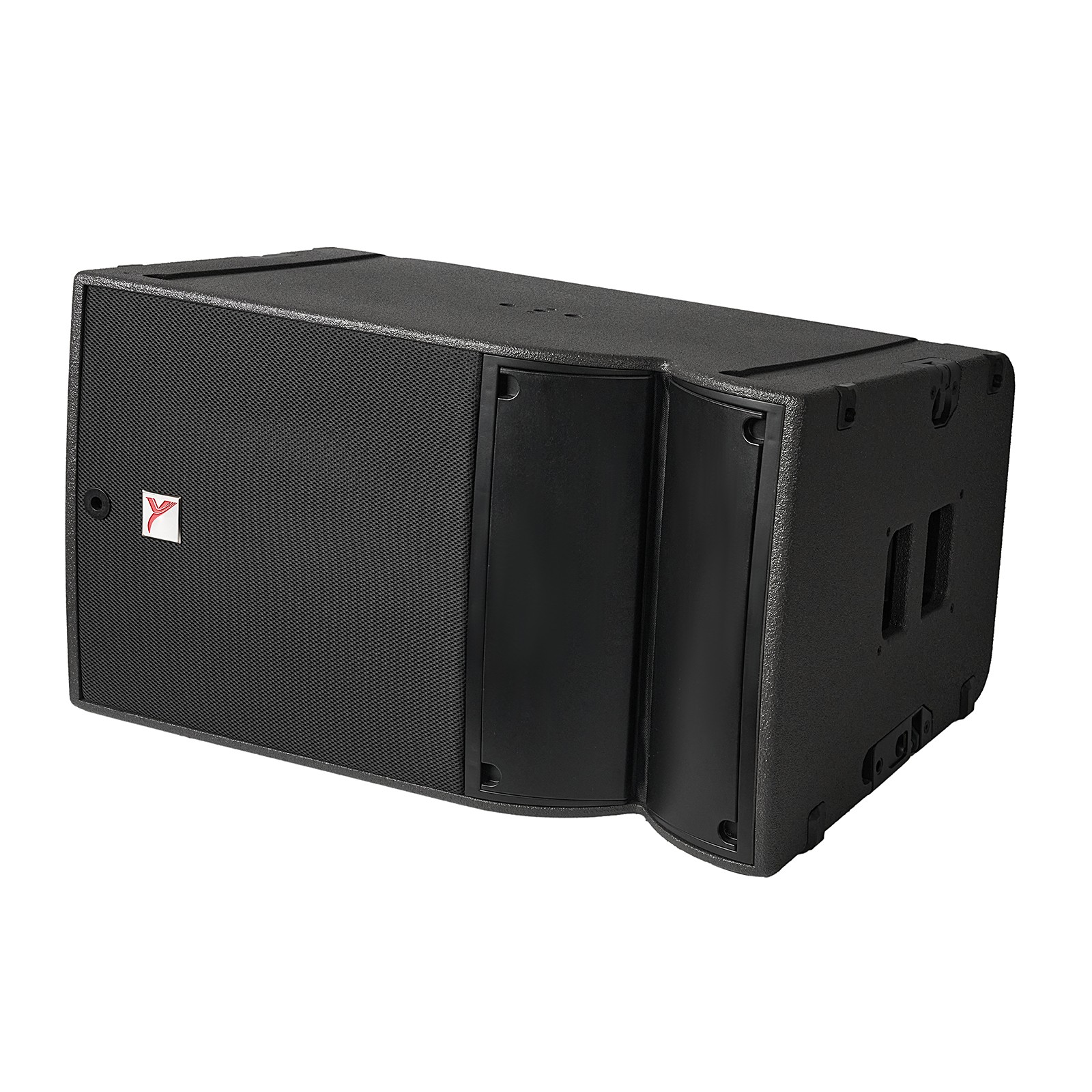

Externally crossed two-way design with side guide fins that support multiple horizontal coverage settings without changing the horn. Convenient rigging and high-resolution sound allow flexible use as a single- or dual-cabinet main system.
Product Overview
Externally crossed two-way design with side guide fins that support multiple horizontal coverage settings without changing the horn. Convenient rigging and high-resolution sound allow flexible use as a single- or dual-cabinet main system.
Applications
Small & medium live events; banquet halls; bars; sports venues; performing arts centers
Key Features

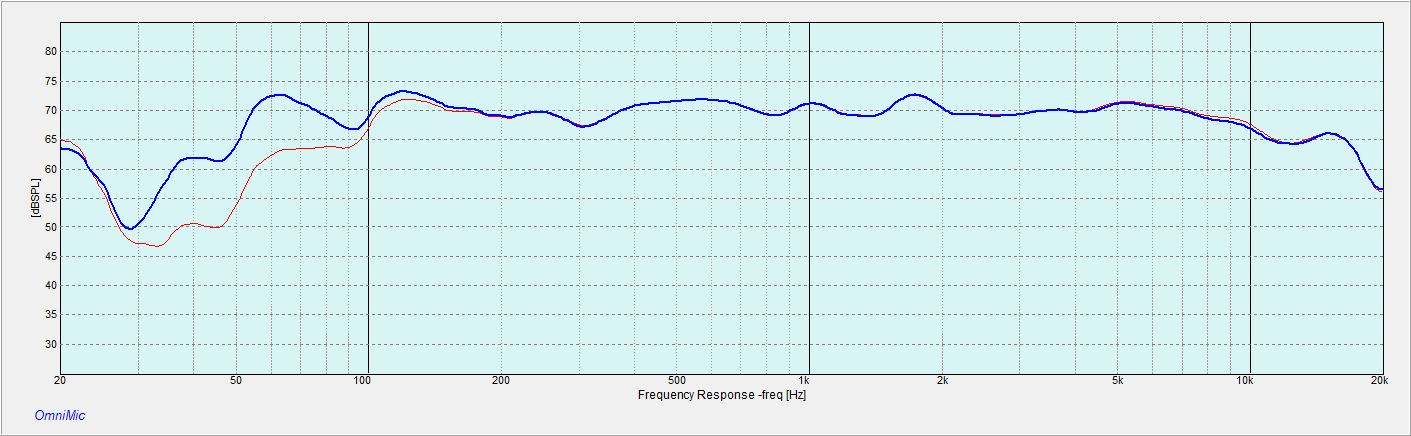

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 50Hz-17KHz(±3dB) |
| Sensitivity (1W, 1m) | 106dB |
| Nominal impedance | 8Ω |
| AES power | 500W |
| Peak power | 1500W |
| Coverage | 70°/90°Hor*110°Ver |
| Driver configuration | 15" 75mm （1.5" Throat diameter）75mm 3"(Neo） |
| Maximum SPL / Peak | 133dB /139dB |
| Connectors | (NEUTRIK NL4)*2 HF:+2-2 LF:+1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W487*H756*D420mm |
| Weight | 35.2kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
