Line Array Systems
J2RPTK-FS-LA

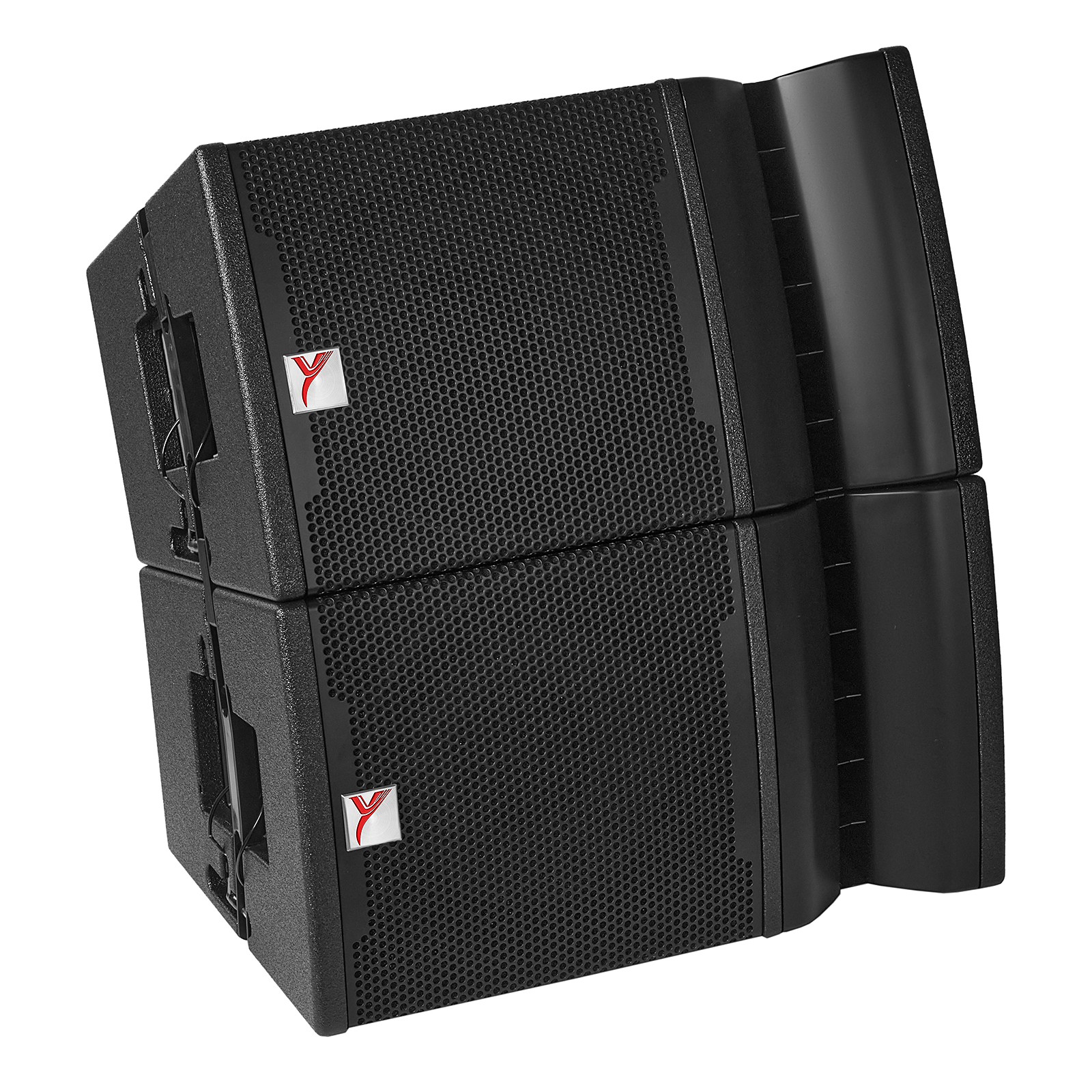

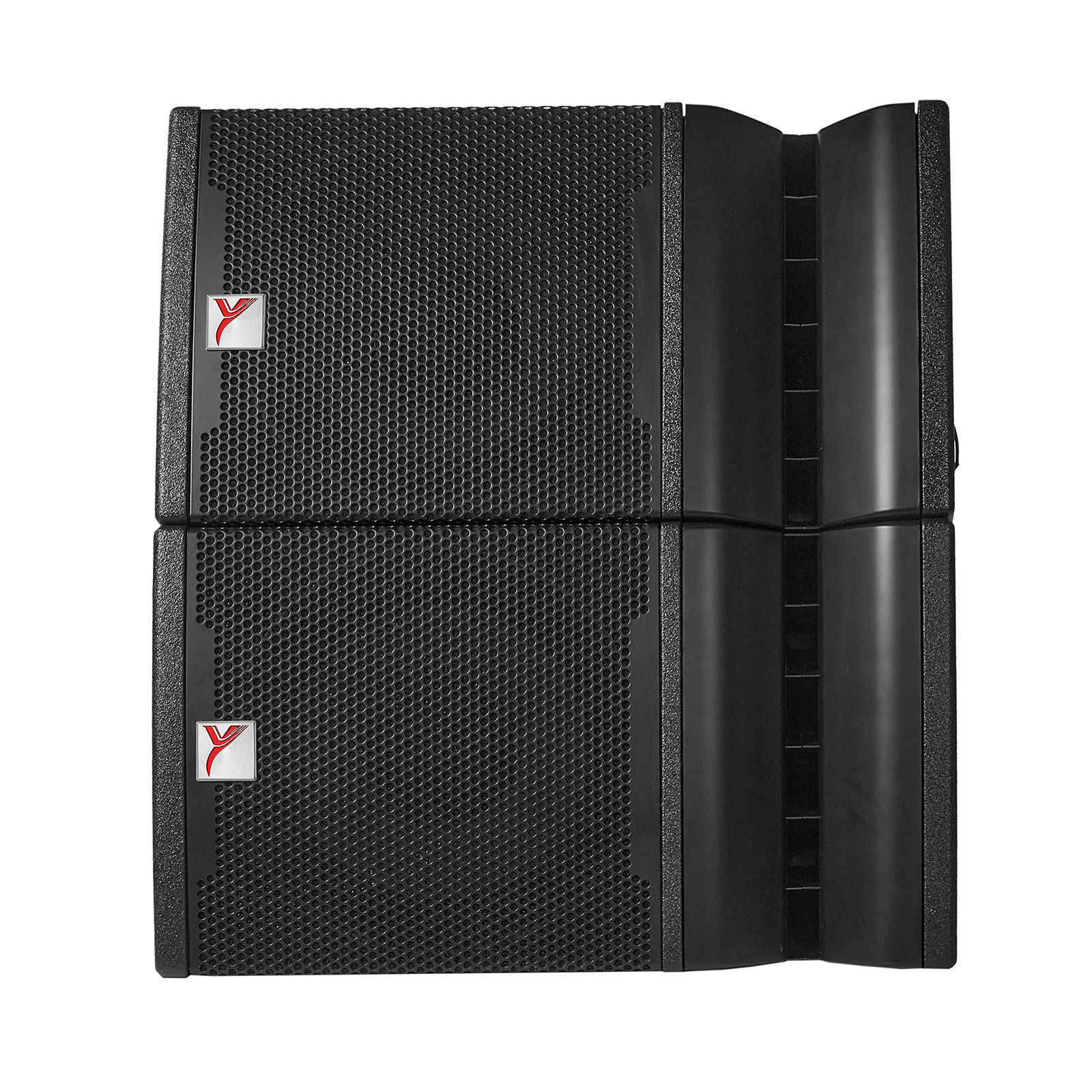

Single 12-inch Two-Way Line Array Speaker
Compact externally crossed two-way array design with a refined enclosure and convenient rigging. Flexible deployment options can be discussed for the application.
Product Overview
Compact externally crossed two-way array design with a refined enclosure and convenient rigging. Flexible deployment options can be discussed for the application.
Applications
Small & medium live events; banquet halls; bars; sports venues; performing arts centers
Key Features
Compact externally crossed two-way array design with a refined enclosure and convenient rigging. Flexible deployment options can be discussed for the application.

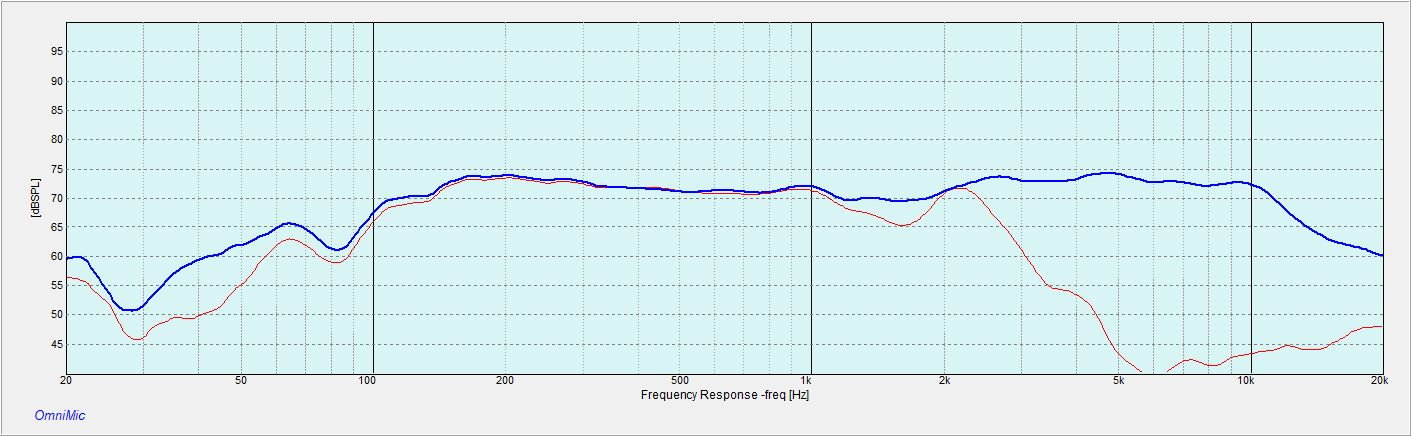

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 60Hz-12KHz(±3dB) |
| Sensitivity (1W, 1m) | 98dB |
| Nominal impedance | 8Ω |
| AES power | 550W |
| Peak power | 1650W |
| Coverage | 100°Hor*15°Ver |
| LF driver | 12" 75mm 8Ω (Neo） |
| HF driver | （1" Throat diameter）38mm 1.5" 8Ω ×3 (Neo） |
| Maximum SPL / Peak | 115dB/121dB |
| Connectors | (NEUTRIK NL4)*2 HF:+2-2 LF:+1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W597*H343*D366mm |
| Weight | 19.2kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
