Line Array Systems
D1RPTK-FS-LA

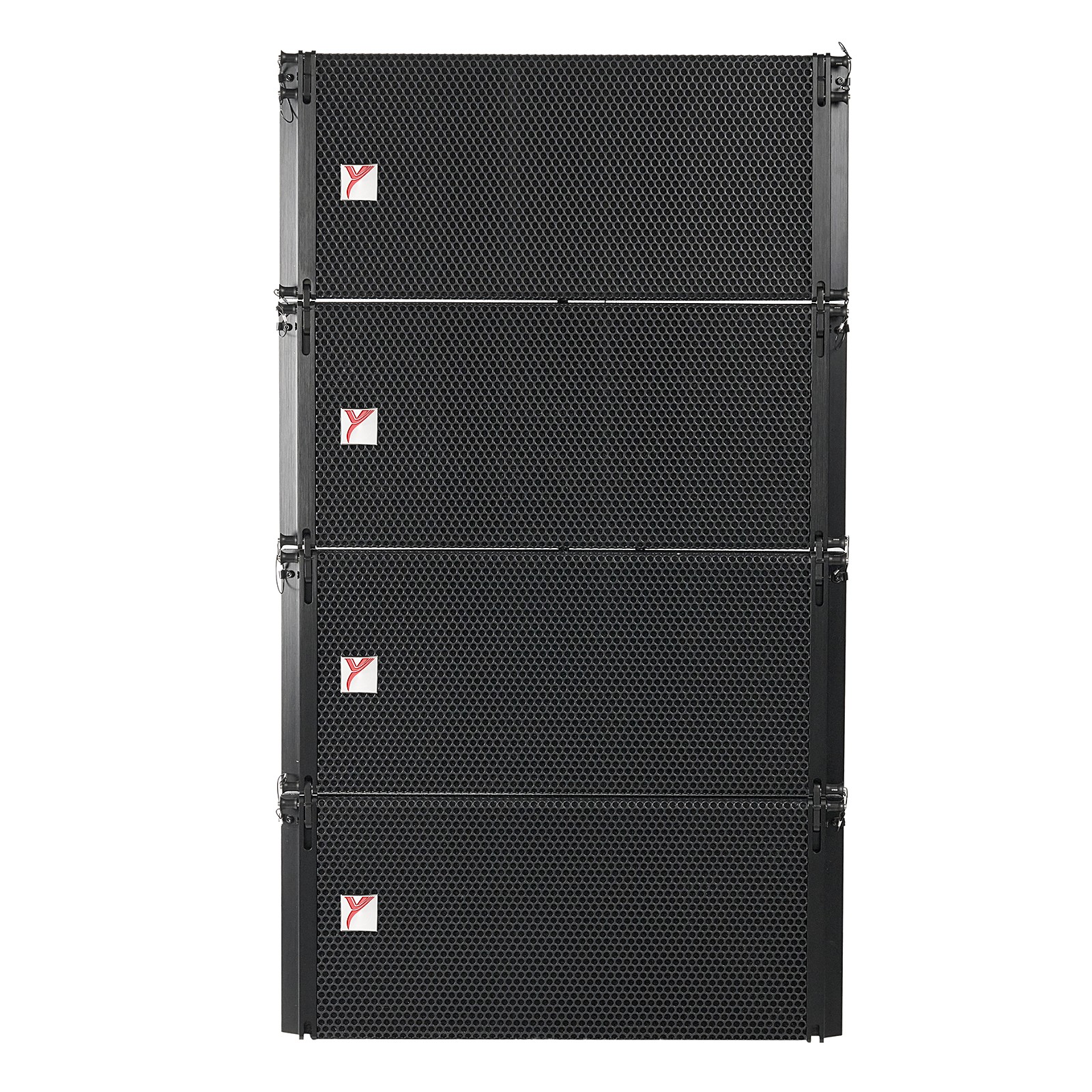

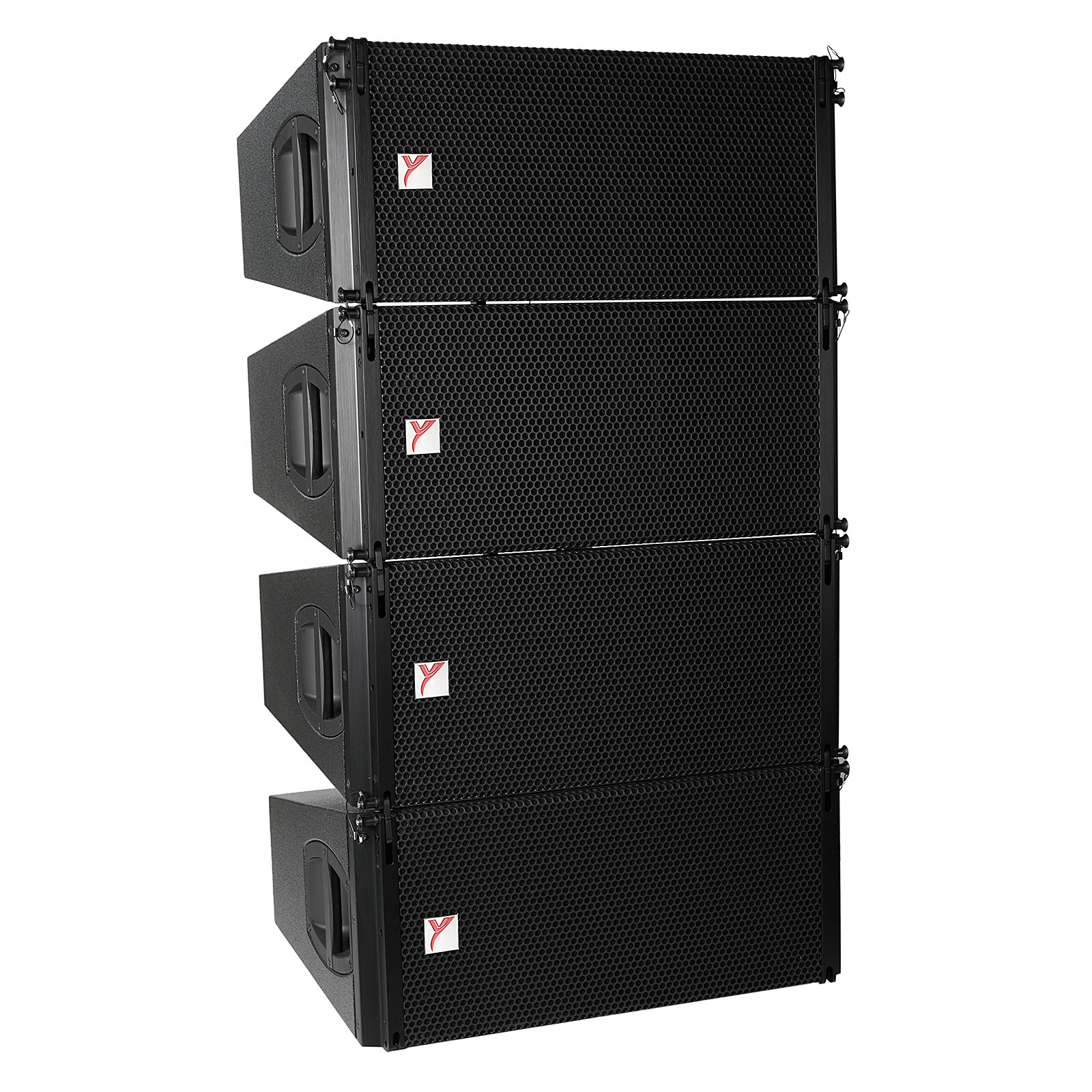

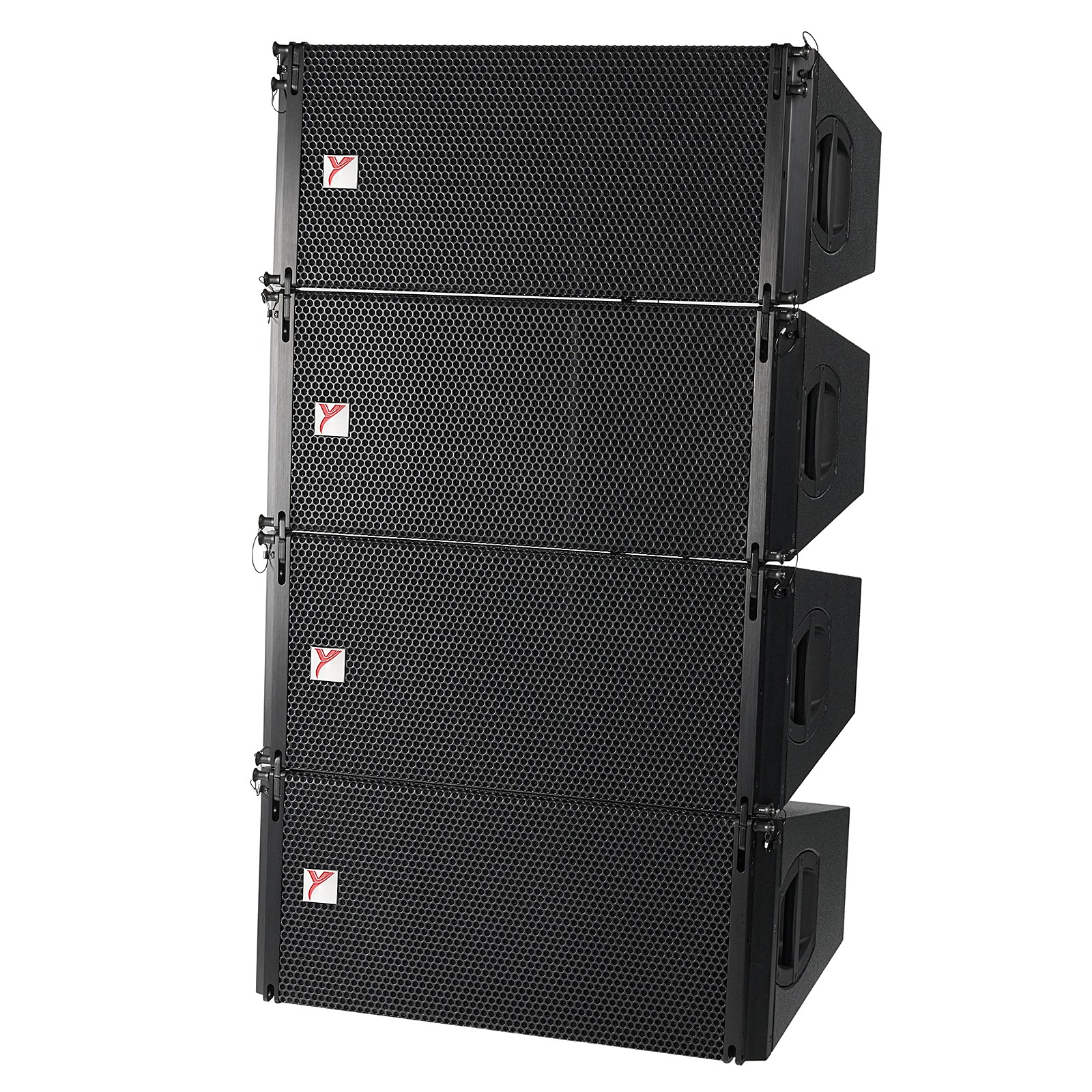

Dual 10-inch Three-Way Line Array Speaker
Compact externally crossed three-way line array design with a space-efficient enclosure, convenient rigging and high-resolution sound reproduction.
Product Overview
Compact externally crossed three-way line array design with a space-efficient enclosure, convenient rigging and high-resolution sound reproduction.
Applications
Small & medium live events; banquet halls; bars; sports venues; performing arts centers; conference centers
Key Features
Compact externally crossed three-way line array design with a space-efficient enclosure, convenient rigging and high-resolution sound reproduction.

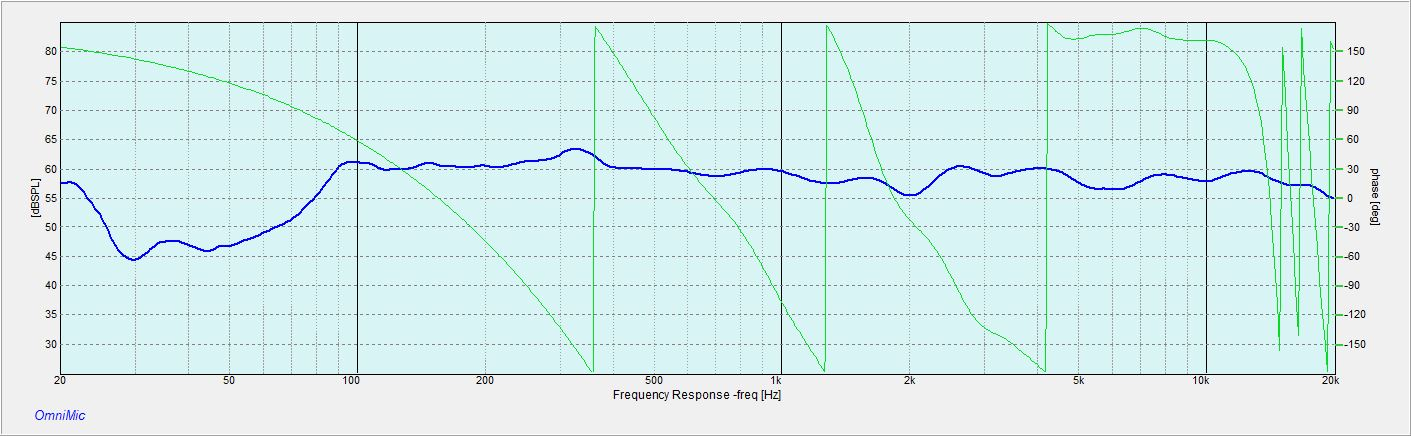

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 80Hz-18KHz(±3dB) |
| Sensitivity (1W, 1m) | 98dB |
| Nominal impedance | 8Ω |
| AES power | 1000W |
| Peak power | 3000W |
| Coverage | 80°Hor*14°Ver |
| Recommended crossover | HF：2KHz-18KHz MF:360Hz-2KHz LF:67Hz-360Hz |
| LF driver | 10" 65mm 16Ω×2 (Neo） |
| MF driver | 9" 50mm 8Ω (Neo） |
| HF driver | （1.5" Throat diameter）65mm 2.5" 16Ω×2 (Neo） |
| Maximum SPL / Peak | 138dB/144dB |
| Connectors | (NEUTRIK NL8)*2 HF:+3-3 MF:+2-2 LF:+1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W700*H310*D460mm |
| Weight | 33kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
