Line Array Systems
2V8LRPTK-FS-LA
Dual 12-inch Two-Way Line Array Speaker
Dual-12-inch externally crossed two-way line array with strong mid/high projection and a compact, well-organized internal structure for professional system deployment.
Product Overview
Dual-12-inch externally crossed two-way line array with strong mid/high projection and a compact, well-organized internal structure for professional system deployment.
Applications
Medium & large live events; banquet halls; bars; sports venues; performing arts centers; conference centers
Key Features
Dual-12-inch externally crossed two-way line array with strong mid/high projection and a compact, well-organized internal structure for professional system deployment.

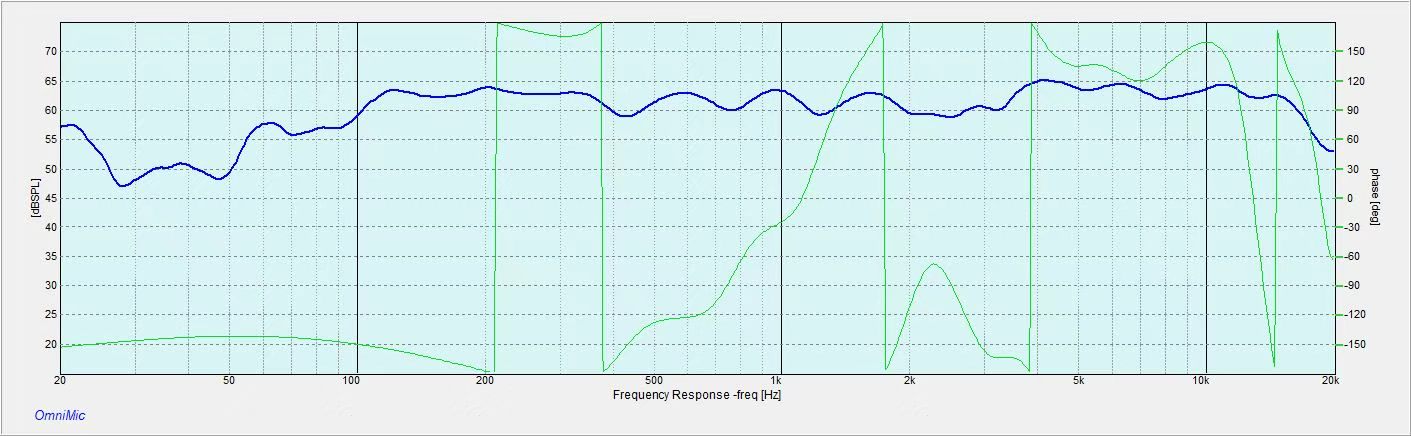

Frequency Response
Specifications
Technical specifications for the selected product.
| Technical Specifications | |
|---|---|
| Frequency response | 55Hz-17KHz(±3dB) |
| Sensitivity (1W, 1m) | 103dB |
| Nominal impedance | 8Ω |
| AES power | 1100W |
| Peak power | 3300W |
| Coverage | 60°Hor*40°Ver |
| Recommended crossover | HF：1.8KHz-18KHz LF:65Hz-1.8KHz |
| LF driver | 12" 75mm 16Ω×2 (Neo） |
| HF driver | （1.5" Throat diameter）75mm 16ΩX2 3" (Neo） |
| Maximum SPL / Peak | 133dB/139dB |
| Connectors | (NEUTRIK NL4)*2 HF:+2-2 LF:+1-1 |
| Cabinet material | 18mm Birch wood |
| Dimensions (W × H × D) | W830*H370*D500mm |
| Weight | 38.2kg |
Product Documents
Final datasheet and manual pending. Contact the team for currently available product information.
